- Open Access
In vitro and in vivotherapeutic approach for a small cell carcinoma of the ovary hypercalcaemic type using a SCCOHT-1 cellular model
Orphanet Journal of Rare Diseases volume 9, Article number: 126 (2014)
The small cell ovarian carcinoma of the hypercalcemic type (SCCOHT) which preferably affects young women during regenerative age represents a rare and aggressive form of ovarian tumors with poor prognosis and lacks an efficient therapy.
Methods and results
In vitro chemotherapy testing in a fluorescence assay using a recently developed cellular model from a recurrent SCCOHT revealed sensitivity for certain epothilones, methotrexate and topotecan whereas little if any cytotoxicity was observed with other chemotherapeutics including platin-based compounds. In particular, epothilone B demonstrated a high sensitivity in contrast to ixabepilone with only little detectable effects. Western blot and cell cycle analysis revealed that the epothilone B sensitivity was associated with increased Ser15 phosphorylation of p53, a significant G1 and G2 cell cycle accumulation and subsequent cell death in subG1 phase. Moreover, tubulinβ3 expression in SMARCA4/BRG1-defective SCCOHT-1 in contrast to other ovarian cancer cells was also affected during chemotherapy treatment. Increased extracellular Ca2+ levels further enhanced the epothilone B cytotoxicity in SCCOHT-1 cells. These in vitro effects were also confirmed in vivo in NOD/scid mouse xenografts demonstrating an attenuated tumor growth in epothilone B / Ca2+-treated mice. After 4d of subsequent treatment, the tumor sizes were reduced by about 90% as compared to continuously growing control tumors. In parallel, a hypercalcemia in control tumor-carrying mice was reverted to normal serum Ca2+ levels after epothilone B / Ca2+ therapy.
Taken together, these data demonstrated anti-tumorigenic effects of epothilone B / Ca2+ in SCCOHT providing a focused therapeutic approach against this rare disease and arising recurrent tumors.
Ovarian cancer represents one of the most lethal gynecologic malignancy. A rare form of an aggressive ovarian tumor is displayed by the small cell ovarian carcinoma of the hypercalcemic type (SCCOHT). So far, no histogenetic origin of SCCOHT has been identified and accordingly, only little is known about tumor tissue characteristics of SCCOHT. Initial immunohistochemical analysis of the SCCOHT has postulated a germ cell-derived tumor  although electron microscopy evaluations of tumor specimen reported SCCOHT as an epithelial-like originating tumor . Further analysis of SCCOHT tumor specimen suggested an inhomogeneous tumor entity which neither confirmed a germ cell-derived nor an epithelial cell-derived tumor origin –. The heterogeneity of these data may be explained in part by the limitations of biopsy material from patients. An appropriate cellular model for this tumor entity is represented by the BIN-67 cells . Due to the unknown etiology, the SCCOHT which represents an aggressive form of ovarian tumors still remains with poor prognosis and no efficient therapy. Thus, the SCCOHT which is mostly accompanied by a paraendocrine hypercalcemia , preferably affects young women between ages of 13 to 35 with lethal outcome in a short period of time after diagnosis.
Potential therapeutic approaches to date are based predominantly on certain histological SCCOHT tissue examinations. The findings revealed that some areas of SCCOHT tumor stained positive for epithelial cell markers whereas the intermediate filament protein vimentin has been described in the majority of cells . In addition, cell cycle analysis of several SCCOHT tumors by flow cytometry reported a broad distribution with 4.7% to 18% of S phase cells and 1.5% to 19.5% of G2/M phase cells , however, the histogenesis and further cell biological properties of the SCCOHT still remained poorly understood. Recent studies of a variety of SCCOHT tissue samples revealed a mutation in the SMARCA4 gene as a potential marker for the SCCOHT –.
Moreover, interaction of the tumor cells with adjacent populations within the tumor microenvironment including endothelial cells and mesenchymal stem cells support tumor vascularization and growth, however, such interaction alters the functionality and induces differentiation processes of the stem cells which can contribute to protect the tumorigenic target cells ,. Consequently, reasonable approaches for the treatment of SCCOHT patients or a sufficient (chemo)therapeutic management are difficult and remain unclear. A recently developed cellular model of SCCOHT-1 cells derived from a primary culture of biopsy material after surgery of a 31-year-old patient with recurrent SCCOHT confirmed a cell type with epithelial/mesenchymal properties by partially expressing epithelial cytokeratins as well as the mesenchymal-type intermediate filament vimentin. Expression of surface markers in SCCOHT-1 includes CD15, CD29, CD44 and CD90 . Based upon this cellular model of SCCOHT-1 cells, we examined in the present study cytotoxic effects of a variety of anti-tumor compounds in comparison to established human ovarian adenocarcinoma cell lines including NIH:OVCAR-3 and SK-OV-3 with known resistance to cisplatin . The obtained in vitro effects in SCCOHT-1 cells with a focus on microtubule-stabilizing chemotherapeutics including epothilone B were investigated at the protein level to identify certain molecular effects and mechanisms. Moreover, epothilone B in combination with calcium was applied in NOD/scid mouse tumor xenografts to verify the in vitro therapeutic effects also in vivo. Our findings provide a more detailed understanding of potential compounds to target ovarian cancer cells exhibiting resistance to a variety of chemotherapeutics.
Material and methods
Primary human SCCOHT-1 cells
SCCOHT-1 cells were derived as a spontaneously permanent growing primary culture from a tumor biopsy after surgery of a 31-year-old patient with recurrent SCCOHT . Informed written consent was obtained from the patient for the use of this material and the study has been approved by the Ethics Committee of Hannover Medical School, Project #3916 on June 15th, 2005. The SCCOHT-1 cells were cultured in RPMI 1640 supplemented with 10% (v/v) fetal calf serum, 2mM L-glutamine, 100U/ml penicillin and 100 μg/ml streptomycin. The tissue culture was performed at 37°C in a humidified atmosphere of 5% (v/v) CO2 and the medium was changed at intervals of 3 to 4 days. For subculture, the loosely attached cells were mechanically collected, centrifuged (320 g/6 min), and resuspended in growth medium at a cell viability of >95% as determined in a hemocytometer using the trypan blue exclusion test. The proliferation of SCCOHT-1 cells was measured in a fluorescence-based microtiter plate assay following transduction of SCCOHT-1 cells with a 3rd generation lentiviral SIN vector containing the eGFP gene as previously described for these cells .
The human SCCOHT cell line BIN-67 (kindly provided by Dr. Barbara Vanderhyden, University of Ottawa, Canada) was cultured with DMEM/F12 : DMEM medium (1:1) (Sigma Aldrich, St. Louis, MO) supplemented with 20% (v/v) fetal calf serum, 2mM L-glutamine, 100U/ml penicillin and 100 μg/ml streptomycin.
Human alveolar adenocarcinoma A549 cell line (kindly provided by Dr. Detlef Neumann, Hannover Medical School, Germany) were cultured with DMEM (Sigma) supplemented with 10% (v/v) fetal calf serum, 2mM L-glutamine, 100U/ml penicillin and 100 μg/ml streptomycin.
Human ovarian adenocarcinoma cell lines
Human NIH:OVCAR-3 ovarian cancer cells (ATCC® #HTB-161™) were commercially obtained in passage 76 (P76) from the Institute for Applied Cell Culture (IAZ), Munich, Germany. The SK-OV-3 ovarian cancer cells (ATCC® #HTB-77™) were commercially obtained in P25 from the ATCC, Manassas, VA, USA. These ovarian adenocarcinoma cell lines were originally established from the malignant ascites of a patient with progressive adenocarcinoma of the ovary, respectively. The cells were cultivated at about 1,750 cells/cm2 in RPMI 1640 supplemented with 10% (v/v) fetal calf serum, 2mM L-glutamine, 100U/ml penicillin and 100 μg/ml streptomycin. Subculture was performed by trypsin/EDTA (Biochrom GmbH, Berlin, Germany) treatment for 5 min at 37°C. For the experiments NIH:OVCAR-3 cells were used in P86 to P118 and SK-OV-3 cells were used in P37 to P39. For fluorescence measurement in an appropriate proliferation assay the NIH:OVCAR-3 as well as the SK-OV-3 cells have also been transduced with a 3rd generation lentiviral SIN vector containing the eGFP gene similar to SCCOHT-1 cells.
Authentication of SCCOHT-1, NIH:OVCAR-3, and SK-OV-3 cells was performed by short tandem repeat (STR) fragment analysis using the GenomeLab human STR primer set (Beckman Coulter Inc., Fullerton, CA, USA). PCR products were sequenced in a CEQ8000 Genetic Analysis System (Beckman Coulter) using the GenomeLab DNA size standard kit-600 (Beckman Coulter). The results of SCCOHT-1 were similar to the original SCCOHT patient cells cultured in our lab and the NIH:OVCAR-3 and SK-OV-3 cell lines results were similar to the STR database provided by the Deutsche Sammlung von Mikroorganismen und Zellkulturen (DSMZ, Braunschweig, Germany).
Proliferation measurement by fluoroscan assay
The ovarian cancer cells were incubated with different concentrations for each of the chemotherapeutic compounds. The compounds and their concentrations used in the cell culture are:
carboplatin (320 μM; Carbomedac, Medac GmbH, Hamburg, Germany), cisplatin (320 μM; Bristol-Myers-Squibb), cyclophosphamide (1.28 mM; Cyclophostin, Pharmacia GmbH, Erlangen, Germany), cytarabine (320 μM; Ara C, Sigma Aldrich GmbH, München, Germany), 5’-fluorouracil (320 μM; Gry-Pharma GmbH, Kirchzarten, Germany), doxorubicin (1.28 μM; Sigma), methotrexate (320nM; Hexal AG, Holzkirchen, Germany), topotecan (320nM; Glaxo Smithkline GmbH&Co KG, Munich), taxol (160nM; Paclitaxel, Bristol-Myers-Squibb GmbH&Co KGaA, Munich), epothilone A (160nM; GBF Braunschweig, Germany), epothilone B (40nM; GBF Braunschweig, Germany), and ixabepilone (80 μM; Bristol-Myers-Squibb), respectively.
For fluorescence measurement the different eGFP-transduced ovarian cancer populations were seeded at 3,000 cells/well with standard culture medium (100 μL/well) in flat bottom 96-well plates (Nunc/ThermoFischer, Roskilde, Denmark) and incubated overnight to allow attachment. Thereafter, 100 μl of culture medium was added to the cells as control and in further wells 100 μl of culture medium with the maximal solvent concentration was added to the cells as solvent control, respectively. Moreover, 100 μl of the chemotherapeutic compounds were added to the cells and dosed in a 2-fold serial dilution. Each plate was applied with a cells-only control in culture medium and a maximal solvent concentration control, respectively (Table 1). The cell viability obtained with the appropriate chemotherapeutic compounds was then normalized to these controls on a plate by plate basis and a drug-dose–response analysis was performed for the different compounds in the 3 different ovarian cancer cell populations. Following incubation of the cells for 72 h, the medium was removed and the cells were lysed with 5% (w/v) SDS. Afterwards, the fluorescence intensities of GFP in the cell homogenate which corresponded to the appropriate cell number of ovarian cancer cells was measured at excitation 485 nm/emission 520 nm using the Fluoroscan Ascent Fl (Thermo Fisher Scientific). The resulting fluorescent signal was first normalized to the mean signal of the cells only wells to control for seeding variability and then to the mean signal of the solvent-only control.
Cell cycle analysis
The cell cycle analysis was performed as described previously . Briefly, 9.3 × 103 cells/cm2 were seeded in culture plates (diameter 10 cm; Greiner Bio-one GmbH, Frickenhausen, Germany) overnight to allow attachment of the cells and adjustment to the culture conditions. Following incubation with 1 μM cisplatin, or 1 μM carboplatin, or 2nM epothilone B for 48 h, the cells were fixed in 70% (v/v) ice-cold ethanol at 4°C for 24 h. Thereafter, about 5 × 105 fixed cells were stained with CyStain DNA 2 step kit (Partec GmbH, Münster, Germany) and filtered through a 50 μm filter. The samples were then analyzed in a Galaxy flow cytometer (Partec) using the MultiCycle cell cycle software (Phoenix Flow Systems Inc., San Diego, CA).
For immunoblot analysis, untreated and chemotherapeutic agents-stimulated SCCOHT-1GFP, NIH:OVCAR-3GFP and SK-OV-3GFP cells were washed three times in ice-cold PBS and lysed in a reswelling buffer containing 8 M urea (Carl Roth GmbH Co KG, Karlsruhe, Germany), 1% CHAPS (3-[(3-Cholamidopropyl)dimethylammonio]-1-propanesulfonate) (Carl Roth GmbH Co KG), 0.5% (v/v) Pharmalyte 3 –10 (GE Healthcare Europe GmbH, Freiburg, Germany), 0.002% (w/v) bromophenol blue (SERVA Electrophoresis GmbH, Heidelberg, Germany) and freshly prepared 0.4% (w/v) DTT (Dithiothreitol) (Carl Roth GmbH Co KG). Protein concentration was adjusted using the colorimetric BCA-assay (ThermoScientic, Rockford, IL, USA), subjected to SDS-polyacrylamide gel electrophoresis and transferred to a hybond-C extra nitrocellulose membrane (GE Healthcare). The membranes were blocked with PBS containing 5% FCS and 0.05% Tween-20 (PBS/Tween). After washing four times with PBS/Tween, the membranes were incubated with the primary antibodies (monoclonal anti-BRG-1 (dilution 1:1,000; ab110641; Abcam plc, Cambridge, UK); polyclonal anti-p53[pSer15] (dilution 1:1,000; Cell Signaling Technology, Beverly, MA, USA); polyclonal anti-p53 (dilution 1:1,000; Cell Signaling Technology); monoclonal anti-HSP27[pSer82] (dilution 1:200; clone 5B9, Enzo GmbH, Lörrach, Germany); monoclonal anti-tubulinβ3 (dilution 1:500; clone TU-20, Novus Biologicals Ltd., Cambridge, UK); monoclonal anti-β-actin (dilution 1:5,000; clone AC-15; Sigma-Aldrich) and monoclonal anti-GAPDH (dilution 1:200; clone AC-15 (Santa Cruz Biotechnology, Santa Cruz, CA, USA)) overnight at 4°C. Thereafter, the membranes were washed four times with PBS/Tween and incubated with the appropriate horseradish peroxidase-conjugated anti-mouse IgG (dilution 1:5,000) or anti-rabbit IgG (dilution 1:10,000) secondary antibody, respectively, (all from GE Healthcare, Freiburg, Germany) for 1 h/room temperature. The membranes were washed with PBS/Tween and visualized by autoradiography using the ECL-detection kit (GE Healthcare). Quantification of the blots was performed by densitometry scanning using the Image J program.
Animal research using NOD/scid mice was carried out by following internationally recognized guidelines on animal welfare and has been approved by the institutional licensing committee ref. #33.14-42502-04-12/0814 on June 22nd, 2012.
About 1 x 106 GFP-labeled SCCOHT-1 cells previously cultured in serum-free HybridoMed DIF 1000 medium to avoid non-specific serum effects were injected subcutaneously into 5 to 6 weeks old female NOD/scid mice, respectively. After about 18 days post injection, all mice with SCCOHT-1GFP cells had developed subcutaneous tumors. A therapeutic approach of the tumors was first tested with a daily subcutaneous injection of only 200 μl epithilone B (10 μM Epo B) at the tumor site for 2 days. To test possible synergistic effects of calcium and epothilone B in a further set of experiments, tumor-carrying mice were divided into 3 treatment groups. The first group represented the control tumor group with 5 animals and was injected subcutaneously with 200 μl of 0.9% NaCl at the tumor site every day. The second group with 5 animals was injected subcutaneously with 200 μl Ca2+ (5 mM) in 0.9% NaCl at the tumor site every day. The third group of 5 animals with tumor-carrying mice was injected subcutaneously with 200 μl Ca2+ (5 mM) together with 10 μM Epo B in 0.9% NaCl at the tumor site every day. The tumor length (L) and width (W) in each animal was measured on a daily basis and the resulting tumor size was calculated as ½ L × W2 where L is the longer of the 2 measurements according to the calculation of ellipsoid tumor forms . The treatment was started at an initial tumor size of approximately 2 to 3 mm3.
At the end of the experiments, the animals were sacrificed by CO2 anesthesia and cervical dislocation. Following UV light examination for the detection of GFP positive tissue, the tumors were dissected whereby tumor weight and the corresponding animal weight were determined.
For calcium measurements cardial blood was taken from the tumor-carrying NOD/scid mice after therapy and serum was prepared and analyzed for Ca2+ concentration using the Calcium Gen.2 reagent kit (Roche Diagnostics, Mannheim, Germany). The Ca2+ test is based on a color reaction with the chromophor 5-nitro-5’-methyl-1,2-bis(o-aminophenoxy)ethane- N,N,N',N'-tetraacetic acid (NM-BAPTA) according to the manufacturer’s instruction (Roche Diagnostics).
To date, little if any successful chemotherapy is available for the poor prognosis SCCOHT and therefore, in vitro testing was performed using a recently developed cellular model of human SCCOHT-1 cells derived from a recurrent small cell ovarian carcinoma of the hypercalcemic type . The proliferative capacity of SCCOHT-1 cells was tested in comparison to NIH:OVCAR-3 and SK-OV-3 ovarian carcinoma cells in a fluorescence-based assay of GFP-labeled cells following treatment with different chemotherapeutic compounds for 72 h (Figure 1A-C). DMSO as an initial solvent for certain compounds was diluted to less than 0.1% (v/v) in the final concentration whereby incubation of the cells with even 0.2% (v/v) DMSO displayed no detectable effects as compared to control cells without DMSO reaching a proliferation rate of 104.3% ± 9.2% (n = 6) after 72 h.
Incubation of the cells with cisplatin revealed an IC50 of 2.3 × 10−5 M in SCCOHT-1GFP cells and 3.3 × 10−6 M and 1.7x10−6 M in SK-OV-3GFP and NIH:OVCAR-3GFP cells, respectively (Figure 1A). Likewise, little effects on the proliferation of these 3 ovarian cancer populations were observed after exposure to carboplatin for up to 72 h (Figure 1A, Table 1). Only a marginal growth inhibition of SCCOHT-1GFP, SK-OV-3GFP and NIH:OVCAR-3GFP cells was also detectable following incubation of the cells with cytarabine and even less with cyclophosphamide (Figure 1A, Table 1). Similarly, 5’-fluoruracil displayed only little effects on the proliferation of the 3 ovarian cancer cell types (Figure 1B, Table 1). In contrast, exposure to doxorubicin, topotecan and methotrexate was associated with a significantly elevated inhibiton of the proliferative capacity in SCCOHT-1GFP, SK-OV-3GFP and NIH:OVCAR-3GFP cells, respectively (Figure 1B, Table 1).
Mitotic inhibitors which stabilize the microtubules including taxol and epothilones exhibited different anti-proliferative effects. Thus, taxol revealed a growth reduction of in SCCOHT-1GFP with a IC50 of 2.2nM which was enhanced in NIH:OVCAR-3 cells displaying an IC50 of 1.4nM but less pronounced in SK-OV-3GFP cells with an IC50 of 2.4nM (Figure 1C, Table 1). Whereas epothilone A demonstrated a slightly reduced sensitivity as compared to taxol, treatment of the 3 different ovarian cancer cell populations to epothilone B revealed the highest growth inhibition tested in this study displaying an IC50 of 1.5nM for SCCOHT-1GFP, 0.3nM for SK-OV-3GFP, and 0.098nM for NIH:OVCAR-3GFP cells (Figure 1C, Table 1). In contrast, only a low responsiveness of the cells was observed to ixabepilone with IC50 value in the micromolar range (Figure 1C, Table 1).
Together, these findings demonstrated differences in the chemotherapeutic sensitivity of these 3 ovarian cancer populations. Moreover, topotecan, methotrexate, taxol and epothilone B appeared as the most potent chemotherapeutic compounds for SCCOHT-1GFP cells in vitro with the highest potency for epothilone B.

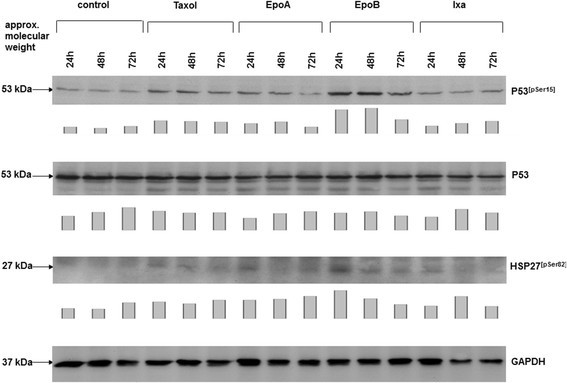

Further analysis was performed to test the effects of epothilone B on the cell cycle progression of the ovarian cancer cells in comparison to cisplatin or carboplatin which are frequently used in a combination with etoposide or taxol, respectively, for treatment of the SCCOHT ,. Flow cytometric cell cycle analysis of logarithmically-growing SCCOHT-1GFP cells revealed a distribution of continuously proliferating cells with about 68% in G0/G1 phase, 9% in S phase and 23% in the mitotic G2/M phase as evaluated by the MultiCycle cell cycle software (Figure 2A). A similar cell cycle distribution of continuously proliferating cells was observed following incubation of SCCOHT-1GFP cells with either 1 μM cisplatin or 1 μM carboplatin for 48 h. In contrast, treatment of SCCOHT-1GFP cells with a 500-fold reduced concentration of 2 nM epothilone B for 48 h was associated with G0/G1 cell cycle arrest and a significant accumulation of dead cells in the subG1 phase (Figure 2A). Likewise, the platin-resistent ovarian cancer cell lines NIH:OVCAR-3 and SK-OV-3 demonstrated a paralleled cell cycle pattern following exposure to 1 μM cisplatin or 1 μM carboplatin or 2 nM epothilone B for 48 h whereby SK-OV-3 also displayed an accumulation in G2/M upon epothilone B exposure (Figure 2A). The SCCOHT-derived cell line BIN-67 demonstrated platin-compound resistance although some subG1 accumulation was detectable following treatment with 1 μM carboplatine for 48 h. Moreover, incubation of BIN-67 cells to 2 nM epothilone B revealed an accumulation in G2/M phase (Figure 2A). These findings substantiated the unresponsiveness of BIN-67 and SCCOHT-1 cells as well as NIH:OVCAR-3 and SK-OV-3 cells to platin-based compounds. Moreover, growth inhibitory effects of epothilone B associated with significant cellular damage and cell death were confirmed in the ovarian cancer lines except for BIN-67 cells with a markedly reduced sensitivity.
Differences between ovarian cancer cells and cells derived from SCCOHT have been previously reported by a mutation in the SMARCA4 gene as a potential marker for the SCCOHT –. Western blot analysis of BRG-1 as the protein product of the SMARCA4 gene revealed a pronounced expression in the NIH:OVCAR-3 and SK-OV-3 ovarian cancer cells, however, little if any BRG-1 protein was detectable in SCCOHT-1 cells (Figure 2B). Likewise, BRG-1 was absent in human alveolar adenocarcinoma A549 cells and in the BIN-67 cell line as previously reported  (Figure 2B), suggesting also a SMARCA4 defect in SCCOHT-1 cells. Detection of β-actin expression was used as a loading control (Figure 2B).
Whereas cellular and DNA damage activate a cascade of repair mechanisms involving p53 and distinct phosphorylation processes of this tumor suppressor protein, the different responses of SCCOHT-1 cells observed with taxol and certain epothilones, particularly epothilone B and ixabepilone, were evaluated by Western blot analysis. Thus, only marginal differences were observed for the protein level of p53 expression in SCCOHT-1 cells following treatment with either taxol, epithilone A, epithilone B, or ixabepilone. However, there was a significantly enhanced detection of phosphorylated p53 at serine15 (p53[pSer15]) particularly between 24 h to 48 h after epothilone B treatment (Figure 3). Likewise, an elevated phosphorylation of the heat shock protein HSP27 at serine 82 (HSP27[pSer82]) could be detected within 24 h to 48 h of epothilone B exposure together with unchanged control expression of GAPDH (Figure 3). Quantification by densitometry scanning also revealed an elevated expression of p53[pSer15] in taxol-stimulated SCCOHT-1 cells, however, these levels remained significantly lower as compared to those observed after epithilone B treatment.

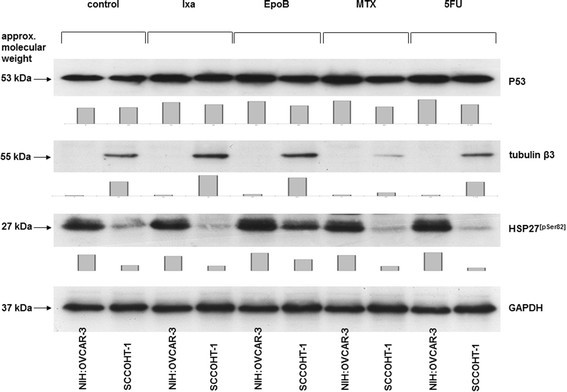

A comparison of distinct chemotherapeutic effects between SCCOHT-1 and NIH:OVCAR-3 cells revealed little if any change in p53 protein expression of the investigated compounds, whereby densitometric analysis revealed slightly induced p53 levels in the compound-treated NIH:OVCAR-3 as compared to SCCOHT-1 cells (Figure 4). A significant difference, however, was observed for the tubulinβ3 protein level which was constitutively expressed already in untreated SCCOHT-1 cells and decreased after methotrexate treatment in contrast to undetectable tubulinβ3 protein in NIH:OVCAR-3 cells (Figure 4). Conversely, HSP27[pSer82] was significantly higher and unaltered expressed in NIH:OVCAR-3 cells as in SCCOHT-1 cells whereby incubation with epothilone B for 24 h was associated with an increase of HSP27[pSer82] protein levels in SCCOHT-1 cells (Figure 4). SK-OV-3 cells are reported as p53 defective and a similar expression pattern as compared to NIH:OVCAR-3 cells was also observed for HSP27[pSer82] and undetectable tubulinβ3 (data not shown).
To further address the question whether these in vitro effects of epothilone B on SCCOHT-1 cells may also be effective in vivo, subcutaneous tumors were induced in NOD/scid mouse xenografts. Injection of 106 GFP-labeled SCCOHT-1 cells resulted in a detectable tumor development within 2–3 weeks. First, NOD/scid mouse tumors were dissected and re-cultured to investigate whether the cells obtained from the re-cultured tumors maintain a similar chemotherapeutic sensitivity observed during previous in vitro culture of SCCOHT-1GFP cells. Indeed, incubation of the NOD/scid mouse tumors re-cultured cells demonstrated a significantly increased sensitivity for epothilone B after 48 h and 72 h, respectively, whereas the responsiveness to topotecan-treated cells remained unaltered (Figure 5A). Conversely, a higher sensitivity was observed for doxorubicin which became significant after 72 h as statistically analyzed by 2-way ANOVA (Figure 5A). According to the hypercalcemia which accompanies this tumor disease, additional questions were addressed whether exogenous calcium affects SCCOHT-1 tumor cell growth in vitro together with epothilone B. Indeed, addition of 1.6 mM CaCl2 was associated with a continuously reduced proliferation of SCCOHT-1 cells in the fluoroscan assay by about 22.4% ± 4.6% (n = 10) after 72 h (Figure 5B). However, Ca2+ exhibited at least additive effects together with epothilone B and further diminished the epothilone B-mediated progressive growth reduction of SCCOHT-1 cells. Thus, the effects of epothilone B which reduced the SCCOHT-1 cell growth by 20.3% ± 3.6% (n = 10) after 24 h was further enhanced to 35.0% ± 5.3% (n = 10) together with Ca2+. Similar synergistic effects of Ca2+ together with an epothilone B-conferred growth inhibition of SCCOHT-1 cells were observed after 48 h and 72 h, respectively (Figure 5B).
Based upon these results, further NOD/scid mouse tumors were examined for a successful therapeutic approach by a daily injection of epothilone B at the tumor site. Testing various concentrations revealed detectable effects with 10 μM epothilone B already after 48 h (=2 treatments) with a tumor size of 2.1 ± 0.2 cm3 as compared to 2.5 ± 0.1 cm3 in NaCl-treated control tumors and a relation of tumor weight to mouse weight of 8.2 ± 0.1 in the epothilone B-treated tumor mice as compared to 11.8 ± 0.6 in the NaCl-treated control tumors (Figure 6A). Although in this first therapeutic approach, the mice had to be sacrificed after 2 days for ethical reasons due to the tumor size, these data demonstrated already a reduction in tumor size by about 16% and a reduction in the relation of tumor weight to mouse weight by about 30% after solely epothilone B treatment.
Since addition of exogenous Ca2+ supported the growth-inhibitory effects of epothilone B in vitro, a further therapeutic approach was tested in vivo whereby 200 μl of 5 mM CaCl2 were injected at the tumor site and compared to the effects of a co-injection of 5 mM CaCl2 + 10 μM epothilone B. Although Ca2+ alone demonstrated little if any effects on the in vivo tumor growth, the combined treatment of Ca2+ + epothilone B was associated with a significant reduction by about 90% in the relation of tumor weight to mouse weight after tumor dissection of the sacrificed mice (Figure 6B). Thus, a therapeutic approach with CaCl2 + epothilone B reached a relation of tumor weight to mouse weight of 0.5 ± 0.2 (n = 3) after 4d, however, Ca2+ alone and the NaCl control injection reached a relation of tumor weight to mouse weight of 5.5 ± 1.0 (n = 4) and 5.6 ± 1.7 (n = 4), respectively. Statistical analysis by 1-way ANOVA revealed a significant tumor reduction (p = 0.027) (Figure 6B). Daily consecutive measurements and corresponding calculations of the tumor size normalized to the size at the beginning of the therapy (day 0) confirmed a more than 90% reduced tumor size in CaCl2 + epothilone B-treated mice. A consecutive NaCl control treatment and solely Ca2+ treatment revealed a rapidly growing and continuously increasing tumor size to 1827% ± 656% (n = 5) and 1472% ± 196% (n = 5) after 4d (Figure 6C). In contrast, consecutive treatment with CaCl2 + epothilone B for 4d was associated with an attenuation of tumor growth reaching an average tumor size of 165% ± 186% (n = 4). These findings suggested that a significantly reduced tumor growth of the SCCOHT in vivo by epothilone B treatment could be further enhanced by the addition of exogenous Ca2+ to the epothilone B therapy. This therapeutic effect of Ca2+/epothilone B was also accompanied by an abolished hypercalcemia in the mice. Whereas NaCl-treated control tumor-carrying mice and Ca2+-treated mice exhibited a hypercalcemia with average calcium levels in the blood serum of 3.11 ± 0.75 mmol/L (n = 3) and 3.20 ± 0.40 mmol/L (n = 4), respectively, the combined treatment of Ca2+/epothilone B demonstrated normal calcium serum levels of 2.16 ± 0.53 mmol/L (n = 3).
SCCOHT represents an aggressive female tumor with poor prognosis and previous work has suggested a multi-modality treatment for the SCCOHT including surgery and a subsequent chemotherapy consisting of cisplatin- and etoposide-based or carboplatin- and taxane-based components followed by a radiotherapy ,. Despite this multi-modality approach, however, the level of tumor relapses remains high and only very few patients survived for more than two years –. Thus, the data obtained in this study demonstrated a certain resistance of SCCOHT-1 cells to a cisplatin- or carboplatin-based chemotherapy since both compounds were ineffective to decrease the proliferative capacity in vitro. Resistance to the platin chemotherapeutics has also been confirmed for the NIH:OVCAR-3 and SK-OV-3 ovarian cancer cells. Moreover, the continuous and unaltered cell cycle progression of SCCOHT-1 cells in the presence of both platin compounds is further questioning the effectiveness of these drugs in patients with SCCOHT. Our findings are also supported by studies in BIN-67 cells, displaying a resistance to platinum and other standard chemotherapeutic agents . In contrast, microtubule-stabilizing compounds such as taxol and more importantly, epothilone B demonstrated significant anti-proliferative effects in SCCOHT-1 as well as in NIH:OVCAR-3 and SK-OV-3 cells in vitro. The growth-inhibitory effects of epothilone B were associated with an activation of the cellular and DNA damage response machinery including enhanced detection of HSP27[pSer82] and p53[pSer15], respectively, followed by increased cell death as determined via subG1 phase cell cycle accumulation in SCCOHT-1 cells. HSP27 phosphorylation can be mediated by PKD upon cellular stress and plays an important role in cellular protection . Moreover, DNA damage response and cell cycle arrest is relayed via p53 phosphorylation including accumulation of p53[pSer15]. Treatment of human A2780 ovarian cancer cells with taxol has been reported with p53 phosphorylation at serin 20  whereby taxol and epothilone B may confer signals for different phosphorylation sites at p53. In addition, epothilone-mediated cytotoxicity is relayed via different forms of p53 .
These significant cytotoxic effects of epothilone B in SCCOHT-1 cells in vitro could also be substantiated in a therapeutic approach of NOD/scid mouse tumor xenografts in vivo leading to an attenuated tumor growth. The differences in epothilone B concentrations used in vitro and in vivo can be related to protective effects by the tumor stroma in vivo. Thus, the tumor cells in vitro can be exposed directly to the drug whereas in vivo, the tumor microenvironment of extracellular matrix with embedded adjacent cell populations including immune cells, endothelial cells, cancer-associated fibroblasts and mesenchymal stem cells contribute to a border which requires higher chemotherapeutic concentrations to target the tumor cells ,.
In this context, it is remarkable to note that the closely related compound ixabepilone, which differs in only one atom by the exchange of oxygen against nitrogen within the ester bridge of the molecule, displayed no detectable effects on SCCOHT-1 cell growth and viability even at a 250-fold higher concentration as compared to epothilone B. These significantly different cellular effects of structurally very similar compounds are related to molecular differences in the interactions with tubulins and the associated stability of the microtubules. Whereas tubulinα and tubulinβ proteins associate to a heterodimer and form a taxane binding pocket at intradimer interfaces, epothilone B binding to this taxane site exhibits a tight interaction with the heterodimeric tubulin molecule and a rather static conformation. In contrast, ixabepilone retains a significant degree of flexibility within the atomic and molecular environment of this taxane binding pocket and therefore displays different effects on the interaction and stability with the tubulin heterodimeric molecule . Such molecular interactions may also apply to the isotype form tubulinβ3 which is present predominantly in aggressive and drug-resistant tumors ,. Indeed, a markedly detectable expression of tubulinβ3 has been identified in SCCOHT-1 cells in contrast to the NIH:OVCAR-3 and SK-OV-3 ovarian cancer cells which substantiates the aggressiveness of SCCOHT.
The significant epothilone B-mediated growth reduction of SCCOHT-1 cells in vitro was maintained in re-cultured cells from induced mouse xenograft tumors and these findings could also be confirmed in vivo demonstrating a tumor reduction by epothilone B in SCCOHT-1-induced mouse xenografts. Moreover, the tumor-reducing effects of epothilone B could be synergistically enhanced by exogenous calcium in vitro and in vivo and resulted in an attenuated tumor growth. The concomitant reduction of the hypercalcemic serum levels back to normal calcium serum levels observed in calcium + epothilone B-treated mice in contrast to the sustained hypercalcemia in untreated and solely calcium-treated tumors appear somewhat paradoxical and suggests an important but so far unexplained physiological role of calcium in this tumor entity. Since increased calcium levels can exhibit cytotoxic effects in ovarian cancer cells in vitro, hypercalcemia may partially represent a defense mechanism of the organism to antagonize the rapid and aggressive tumor growth and exogenously added calcium may further raise these levels for a sufficient synergy with epothilone B. However, the underlying mechanisms of this synergism remain unanswered and require further investigation.
Whereas only little therapeutic strategies for unresponsive ovarian carcinoma are available, the present findings provide a more detailed understanding of potential compounds to target ovarian cancer cells exhibiting resistance to a variety of chemotherapeutics. Moreover, this work demonstrates a promising disease-focused approach including some molecular explanation for targeting the small cell carcinoma of the ovary hypercalcaemic type which may be embedded into a multi-modality therapeutic approach for a better targeted treatment of this rare cancerous disease.
Small cell carcinoma of the ovary hypercalcemic type
Green fluorescent protein
Protein kinase D
Ulbright TM, Roth LM, Stehman FB, Talerman A, Senekjian EK: Poorly differentiated (small cell) carcinoma of the ovary in young women: evidence supporting a germ cell origin. Hum Pathol. 1987, 18: 175-184.
Young RH, Oliva E, Scully RE: Small cell carcinoma of the hypercalcemic type in the ovary. Gynecol Oncol. 1995, 57: 7-8.
Aguirre P, Thor AD, Scully RE: Ovarian small cell carcinoma. Histogenetic considerations based on immunohistochemical and other findings. Am J Clin Pathol. 1989, 92: 140-149.
Walt H, Hornung R, Fink D, Dobler-Girdziunaite D, Stallmach T, Spycher MA, Maly F, Haller U, Burki N: Hypercalcemic-type of small cell carcinoma of the ovary: characterization of a new tumor line. Anticancer Res. 2001, 21: 3253-3259.
McCluggage WG, Oliva E, Connolly LE, McBride HA, Young RH: An immunohistochemical analysis of ovarian small cell carcinoma of hypercalcemic type. Int J Gynecol Pathol. 2004, 23: 330-336.
Upchurch KS, Parker LM, Scully RE, Krane SM: Differential cyclic AMP responses to calcitonin among human ovarian carcinoma cell lines: a calcitonin-responsive line derived from a rare tumor type. J Bone Miner Res. 1986, 1: 299-304.
Dickersin GR, Kline IW, Scully RE: Small cell carcinoma of the ovary with hypercalcemia: a report of eleven cases. Cancer. 1982, 49: 188-197.
Eichhorn JH, Bell DA, Young RH, Swymer CM, Flotte TJ, Preffer RI, Scully RE: DNA content and proliferative activity in ovarian small cell carcinomas of the hypercalcemic type. Implications for diagnosis, prognosis, and histogenesis. Am J Clin Pathol. 1992, 98: 579-586.
Jelinic P, Mueller JJ, Olvera N, Dao F, Scott SN, Shah R, Gao J, Schultz N, Gonen M, Soslow RA, Berger MF, Levine DA: Recurrent SMARCA4 mutations in small cell carcinoma of the ovary. Nat Genet. 2014, 46: 424-426.
Witkowski L, Carrot-Zhang J, Albrecht S, Fahiminiya S, Hamel N, Tomiak E, Grynspan D, Saloustros E, Nadaf J, Rivera B, Gilpin C, Castellsague E, Silva-Smith R, Plourde F, Wu M, Saskin A, Arseneault M, Karabakhtsian RG, Reilly EA, Ueland FR, Margiolaki A, Pavlakis K, Castellino SM, Lamovec J, Mackay HJ, Roth LM, Ulbright TM, Bender TA, Georgoulias V, Longy M, et al: Germline and somatic SMARCA4 mutations characterize small cell carcinoma of the ovary, hypercalcemic type. Nat Genet. 2014, 46: 438-443.
Ramos P, Karnezis AN, Craig DW, Sekulic A, Russell ML, Hendricks WP, Corneveaux JJ, Barrett MT, Shumansky K, Yang Y, Shah SP, Prentice LM, Marra MA, Kiefer J, Zismann VL, McEachron TA, Salhia B, Prat J, D'Angelo E, Clarke BA, Pressey JG, Farley JH, Anthony SP, Roden RB, Cunliffe HE, Huntsman DG, Trent JM: Small cell carcinoma of the ovary, hypercalcemic type, displays frequent inactivating germline and somatic mutations in SMARCA4. Nat Genet. 2014, 46: 427-429.
Ungefroren H, Sebens S, Seidl D, Lehnert H, Hass R: Interaction of tumor cells with the microenvironment. Cell Commun Signal. 2011, 9: 18-
Hass R, Otte A: Mesenchymal stem cells as all-round supporters in a normal and neoplastic microenvironment. Cell Commun Signal. 2012, 10: 26-
Otte A, Gohring G, Steinemann D, Schlegelberger B, Groos S, Langer F, Kreipe HH, Schambach A, Neumann T, Hillemanns P, Park-Simon TW, Hass R: A tumor-derived population (SCCOHT-1) as cellular model for a small cell ovarian carcinoma of the hypercalcemic type. Int J Oncol. 2012, 41: 765-775.
Bernhardt G, Muller R, Gust R, Reile H, Keller C, Spruss T, Schonenberger H: Dichloro-[1-(hydroxyphenyl)-2-phenylethylenediamine]platinum(II) complexes: testing on the human ovarian cancer cell lines NIH: OVCAR3 and SK OV 3. Arch Pharm. 1992, 325: 93-99.
Bertram C, Hass R: Cellular senescence of human mammary epithelial cells (HMEC) is associated with an altered MMP-7/HB-EGF signaling and increased formation of elastin-like structures. Mech Ageing Dev. 2009, 130: 657-669.
Tomayko MM, Reynolds CP: Determination of subcutaneous tumor size in athymic (nude) mice. Cancer Chemother Pharmacol. 1989, 24: 148-154.
Shrimali RK, Correa PD, Reed NS: Dose-dense and dose-intense chemotherapy for small cell ovarian cancer: 2 cases and review of literature. Med Oncol (Northwood London England). 2012, 28: 766-770.
Harrison ML, Hoskins P, du Bois A, Quinn M, Rustin GJ, Ledermann JA, Baron-Hay S, Friedlander ML: Small cell of the ovary, hypercalcemic type – analysis of combined experience and recommendation for management. A GCIG Study Gynecol Oncol. 2006, 100: 233-238.
Benrubi GI, Pitel P, Lammert N: Small cell carcinoma of the ovary with hypercalcemia responsive to sequencing chemotherapy. South Med J. 1993, 86: 247-248.
Reed WC: Small cell carcinoma of the ovary with hypercalcemia: report of a case of survival without recurrence 5 years after surgery and chemotherapy. Gynecol Oncol. 1995, 56: 452-455.
Dykgraaf RH, de Jong D, van Veen M, Ewing-Graham PC, Helmerhorst TJ, van der Burg ME: Clinical management of ovarian small-cell carcinoma of the hypercalcemic type: a proposal for conservative surgery in an advanced stage of disease. Int J Gynecol Cancer. 2009, 19: 348-353.
Barondeau J, Rodgers M, Braun L, Azarow K, Forouhar M, Faucette K: Small cell ovarian carcinoma: a rare, aggressive tumor masquerading as constipation in a teenager with a fatal outcome. J Pediatr Hematol Oncol. 2010, 32: e139-e141.
Gamwell LF, Gambaro K, Merziotis M, Crane C, Arcand SL, Bourada V, Davis C, Squire JA, Huntsman DG, Tonin PN, Vanderhyden BC: Small cell ovarian carcinoma: genomic stability and responsiveness to therapeutics. Orphanet J Rare Dis. 2010, 8: 33-
Stetler RA, Gao Y, Zhang L, Weng Z, Zhang F, Hu X, Wang S, Vosler P, Cao G, Sun D, Graham SH, Chen J: Phosphorylation of HSP27 by protein kinase D is essential for mediating neuroprotection against ischemic neuronal injury. J Neurosci. 2012, 32: 2667-2682.
Bertram C, Hass R: Cellular responses to reactive oxygen species-induced DNA damage and aging. Biol Chem. 2008, 389: 211-220.
Damia G, Filiberti L, Vikhanskaya F, Carrassa L, Taya Y, D'Incalci M, Broggini M: Cisplatinum and taxol induce different patterns of p53 phosphorylation. Neoplasia (New York, NY. 2001, 3: 10-16.
Ioffe ML, White E, Nelson DA, Dvorzhinski D, DiPaola RS: Epothilone induced cytotoxicity is dependent on p53 status in prostate cells. Prostate. 2004, 61: 243-247.
Khrapunovich-Baine M, Menon V, Yang CP, Northcote PT, Miller JH, Angeletti RH, Fiser A, Horwitz SB, Xiao H: Hallmarks of molecular action of microtubule stabilizing agents: effects of epothilone B, ixabepilone, peloruside A, and laulimalide on microtubule conformation. J Biol Chem. 2011, 286: 11765-11778.
Kavallaris M: Microtubules and resistance to tubulin-binding agents. Nat Rev. 2010, 10: 194-204.
Seve P, Dumontet C: Is class III beta-tubulin a predictive factor in patients receiving tubulin-binding agents?. Lancet Oncol. 2008, 9: 168-175.
Otte A, Rauprich F, von der Ohe J, Hillemanns P, Hass R: Interference of Ca2+ with the proliferation of SCCOHT-1 and ovarian adenocarcinoma cells. Int J Oncol. 2014, 45: 1151-1158.
The authors are grateful to Dr. N. von Neuhoff, Hannover Medical School, for the support with the cell line authentication by STR profiling analysis, and to Prof. Dr. R. Lichtinghagen, Hannover Medical School, for support with the calcium measurement. This work was supported by a grant from the Niedersächsische Krebsgesellschaft e.V. to Ralf Hass.
The authors declare no financial, personal, or professional conflicts of interest.
AO, FR and JO performed the proliferation tests with the various chemotherapeutics, the cell cycle analysis and the Western blots. RH and AO exhibited the in vivo studies. PH and TPS critically read and revised the manuscript and contributed clinical background. RH designed and supervised the study and drafted the manuscript. All authors read and approved the final manuscript.
