Small cell ovarian carcinoma: genomic stability and responsiveness to therapeutics
Orphanet Journal of Rare Diseasesvolume 8, Article number: 33 (2013)
The biology of small cell ovarian carcinoma of the hypercalcemic type (SCCOHT), which is a rare and aggressive form of ovarian cancer, is poorly understood. Tumourigenicity, in vitro growth characteristics, genetic and genomic anomalies, and sensitivity to standard and novel chemotherapeutic treatments were investigated in the unique SCCOHT cell line, BIN-67, to provide further insight in the biology of this rare type of ovarian cancer.
The tumourigenic potential of BIN-67 cells was determined and the tumours formed in a xenograft model was compared to human SCCOHT. DNA sequencing, spectral karyotyping and high density SNP array analysis was performed. The sensitivity of the BIN-67 cells to standard chemotherapeutic agents and to vesicular stomatitis virus (VSV) and the JX-594 vaccinia virus was tested.
BIN-67 cells were capable of forming spheroids in hanging drop cultures. When xenografted into immunodeficient mice, BIN-67 cells developed into tumours that reflected the hypercalcemia and histology of human SCCOHT, notably intense expression of WT-1 and vimentin, and lack of expression of inhibin. Somatic mutations in TP53 and the most common activating mutations in KRAS and BRAF were not found in BIN-67 cells by DNA sequencing. Spectral karyotyping revealed a largely normal diploid karyotype (in greater than 95% of cells) with a visibly shorter chromosome 20 contig. High density SNP array analysis also revealed few genomic anomalies in BIN-67 cells, which included loss of heterozygosity of an estimated 16.7 Mb interval on chromosome 20. SNP array analyses of four SCCOHT samples also indicated a low frequency of genomic anomalies in the majority of cases. Although resistant to platinum chemotherapeutic drugs, BIN-67 cell viability in vitro was reduced by >75% after infection with oncolytic viruses.
These results show that SCCOHT differs from high-grade serous carcinomas by exhibiting few chromosomal anomalies and lacking TP53 mutations. Although BIN-67 cells are resistant to standard chemotherapeutic agents, their sensitivity to oncolytic viruses suggests that their therapeutic use in SCCOHT should be considered.
Ovarian small cell carcinoma of the hypercalcemic type (SCCOHT) is a rare and highly aggressive form of ovarian cancer first reported in 1982 by Dickerson et al.. The mean age of diagnosis is 23 years and the prognosis for these patients is generally poor, with a two year survival of less than 20%[2, 3]. Although not considered a familial disease, there is a case report of an 11-year-old female diagnosed with SCCOHT, who had a strong family history of the disease, a reduction in the age of onset in the proband, and the absence of BRCA1/BRCA2 mutations. While the incidence of SCCOHT is rare in the general population, it is the most common undifferentiated ovarian cancer in women under 40 years of age. Its histogenesis is unknown, but the disease is associated with hypercalcemia in two-thirds of patients and the frequency of bilateral ovarian tumours is low. Histologically, the tumours have a sheet-like arrangement of small, closely packed epithelial cells with 80% of cases containing variably sized follicle-like structures.
The rarity and aggressiveness of SCCOHT has lent itself poorly for study and therefore there are few reports on therapeutic strategies and no effective treatment regimens. While most patients undergo aggressive surgical resection followed by multi-agent, high dose chemotherapy, very few are cured. Despite a rapid initial response to chemotherapy and radiation therapy, recurrence rates are high and those tumours tend to be less responsive to chemotherapy[3, 5–7].
Although SCCOHT is morphologically similar to small cell carcinomas from other sites, its common expression of WT1 and lack of thyroid transcription factor (TTF)-1 allows it to be distinguished from other small cell cancers. Immunohistochemical characterization of 15 SCCOHT showed frequent expression of p53, WT1 and epithelial markers, including epithelial membrane antigen, and less common to no expression of synaptophysin, S100 and inhibin. The presence of p53 in 80-100% of SCCOHT suggests that TP53 gene abnormalities may be involved in the genesis of this highly aggressive cancer[8, 9], but mutational analysis has yet to be performed.
The cell line BIN-67, first reported in 1986, was established from a metastatic pelvic nodule derived from a primary SCCOHT. In contrast to cell lines derived from ovarian serous adenocarcinomas, the BIN-67 cells express high levels of vimentin and respond to calcitonin with a >20-fold increase in cAMP. BIN-67 appears to be the only SCCOHT cell line in existence and its further characterization could improve our understanding of this rare form of ovarian cancer. We have assayed the tumourigenic potential of BIN-67 cells and compared the tumours formed in a xenograft model to human SCCOHT. We also characterized their genomic content, performed a targeted gene mutation analysis, and tested their sensitivity to standard chemotherapeutic agents and to vesicular stomatitis virus (VSV) and the JX-594 vaccinia virus, both oncolytic viruses, which have been shown to be effective novel anti-cancer treatments in a variety of model systems[11–14].
Cell lines and SCCOHT samples
Primary mouse ovarian surface epithelial cells (MOSE) were isolated and cultured in α-MEM supplemented with 10% fetal calf serum (FCS; Sigma Chemical Co., St Louis, MO), epidermal growth factor and insulin-transferrin-selenium as described. The platinum-sensitive human ovarian cancer cell line, A2780s, and its platinum-resistant derivative, A2780cp, were maintained in DMEM with 10% FCS. The BIN-67 cell line was obtained from Dr. S.R. Golding (Hospital for Special Surgery, New York) and cultured from frozen stock in DMEM supplemented with 20% FCS and enriched with 20% Ham’s F12 medium (Sigma Chemical Co.) as previously described.
Samples from four SCCOHT were obtained from the Children’s Oncology Group at Nationwide Children’s Hospital in Columbus, Ohio, The University Health Network (Dr. Blaise Clarke) and the Ovarian Cancer Research Program tissue bank in Vancouver, British Columbia, Canada. All resources provide access to samples through specific application to studies approved by institutional review boards.
Spheroid formation assay
BIN-67 cells were tested for their ability to form spheroids by the hanging droplet method as previously described.
Characterization of BIN-67 as a model of SCCOHT
BIN-67 cells (107) in 1 mL of saline were injected intraperitoneally into 18 female 8-week-old Fox Chase SCID mice (CB-17 SCID, Charles Rivers Laboratories). When the mice reached a defined endpoint (large palpable mass), the tumours were removed, weighed and fixed in formalin. Histologic sections (5 μm) were prepared and either stained with hematoxylin and eosin to visualize morphology or immunostained for expression of cytokeratin (pre-diluted; Abcam, Cambridge, MA), vimentin (1:100; Dako, Carpinteria, CA), p53 (1:50; Santa Cruz Biotechnology; Santa Cruz, CA), KIT (CD117, 1:40; Dako), inhibin (1:25; Dako), WT1 (1:100; Dako), and the markers of neuroendocrine differentiation Pgp9.5 (1:3000; Millipore, Billerica, MA) and α-synaptophysin (1:400; BD Transduction, Mississauga, ON).
Blood samples were collected by saphenous vein puncture prior to BIN-67 xenograft and by cardiac puncture at necropsy and serum ionized calcium levels were measured using the i-STAT hand-held blood analyzer with EG7+ cartridges (Abbot Point of Care, Mississauga, Ontario, Canada) to determine if tumours derived from the BIN-67 cells cause hypercalcemia.
Chromosomal anomalies in BIN-67 cells were inferred using the Infinium™ genotyping technology with the HumanHap300-Duo Genotyping BeadChip (Illumina, San Diego, CA, USA) as previously described. This BeadChip contains about 318,000 genetic markers within approximately a 5 Kb median SNP spacing. Genotyping and imaging using BeadStudio Data Analysis software (Illumina, San Diego, CA, USA) were performed at the McGill University and Genome Quebec Innovation Centre (Montreal, QC). The February 2009 human reference sequence GRCh37/hg19 assembly (http://genome.ucsc.edu/cgi-bin/hgGateway) was used for the characterization of selected intervals. SNP array data for BIN-67 is available through the ArrayExpress Archive (http://www.ebi.ac.uk/arrayexpress/).
DNA from BIN-67 cells, four SCCOHT samples (T1, T2, T3 and T4), and a matched normal sample from one of the patients (T4-N) were genotyped using Affymetrix Genome-Wide Human SNP Array 6.0 and analyzed using CRMAv2 and HMMDosage as described previously[19, 20]. To compare genomic anomalies across samples genotyped, the analyzed data was plotted and visualized using Circos.
Cytogenetic preparations from BIN-67 cultures were processed using standard methods and subjected to conventional G-banding and spectral karyotype (SKY) analysis. Slides containing optimal metaphase preparations were aged for one week at room temperature and hybridized with the SKY-painting probes (Applied Spectral Imaging, Vista, Calif., USA) as per the manufacturer’s instructions. Image analysis and capture were performed using an AxioPlan Fluorescent Microscope and Spectral Karyotyping software (Applied Spectral Imaging).
TP53, KRAS and BRAF mutation analyses
Mutation analysis of protein encoding regions and exon splice sites regions of TP53, and commonly mutated exons of KRAS and BRAF were sequenced and evaluated as described previously.
Expression microarray analyses
Microarray expression analysis was performed using the GeneChip® Human Genome U133 Plus 2.0 Array (Affymetrix®, Santa Clara, CA) with total RNA from BIN-67 cells as described previously. Hybridization and scanning were performed at the McGill University and Genome Quebec Innovation Centre (Montreal, QC). Gene expression levels were determined from the scanned images using Affymetrix® Microarray Suite (MAS) version 5.0 software expression algorithm (Affymetrix®) normalized as described previously. Gene expression profiles were compared with Affymetrix U133 Plus 2.0 (MAS5.0) generated expression profiles (similarly normalized) from 10 human normal ovarian surface epithelial (OSE) cell brushings available in the ArrayExpress database (http://www.ebi.ac.uk/arrayexpress/), accession number E-GEOD-18520. Gene expression array data for BIN-67 is available through the ArrayExpress Archive (http://www.ebi.ac.uk/arrayexpress/).
Treatment with chemotherapeutics and oncolytic viruses
To determine the effects of chemotherapeutic drugs on BIN-67 cells in vitro, MOSE, A2780cp, A2780s and BIN-67 cells were plated at a density of 1 × 104 cells/100 μL in 96-well plates and after 24 hours the drugs were added (cisplatin: 0, 0.1, 1, 10, 100 μg/mL; carboplatin: 0. 1, 5, 10, 100, 200 μg/mL). The numbers of viable cells were determined 72 hours later using the CellTiter 96 AQueious cell proliferation assay system.
To determine if oncolytic viruses could infect and kill the BIN-67 cells in vitro, the four cell lines were plated as described above. After 24 hours, the cells were washed twice with PBS and treated with an attenuated strain of VSV (VSV-Δ51; multiplicity of infections (MOI): 0, 0.001, 0.01, 0.1) and the vaccinia virus JX-594 (MOI: 0, 0.001, 0.01, 0.1) in serum-free media for 72 hours. The numbers of viable cells were determined using the metabolic indicator dye Alamar Blue (Serotec Ltd., Raleigh, NC), read with a Fluoroskan Ascent FL (Thermo Scientific, Rockland, IL). Both viruses were obtained from Dr. John Bell (Ottawa, ON) and were tagged with green fluorescent protein (GFP) to enable assessment of infection 48 hours after addition of virus[13, 14].
Experiments were performed at least three times in triplicate and statistical analyses (one-way ANOVA and Student’s t-tests) were performed using GraphPad Prism (version 3.02; GraphPad Software, San Diego, CA).
BIN-67 cells are tumourigenic
In cell culture, BIN-67 cells are small with little cytoplasm. In hanging drop cultures, BIN 67 cells are capable of forming densely packed spheroids with an irregular but compact margin (Additional file1: Figure S1), which is a feature exhibited by some epithelial ovarian cancer cell lines that are capable of forming tumours in mouse xenograft models.

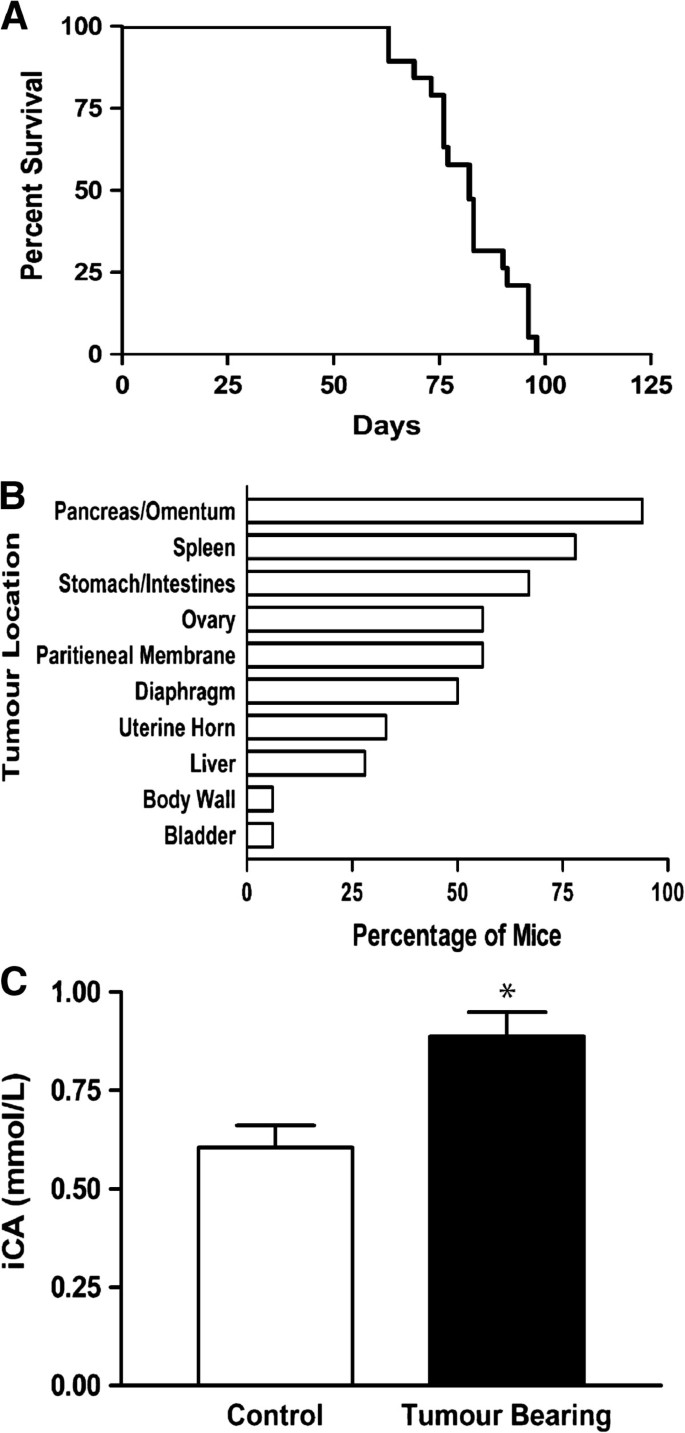

Intraperitoneal xenograft of the BIN-67 cells resulted in large palpable tumours in 18/18 mice. The median survival was 82 days (range: 61-96; Figure 1A) and the average tumour burden was 13% of body mass (Figure 2A). Tumours were associated with the surface of the diaphragm, spleen, pancreas, stomach, intestines, ovary and uterine horn with little to no ascites production (Figure 1B). The incidence of tumours was highest on the pancreas, omentum and spleen and was associated with the ovary in 56% of the mice. Similar to patients with SCCOHT, BIN-67 tumours in mice were associated with a significant increase in serum ionized calcium (iCa) at endpoint (n=11) compared with samples taken before the xenograft (n=4; p<0.05; Figure 1C).
SCCOHT is characterized by sheet-like arrangements of small, closely packed epithelial cells, wherein follicle-like structures can be found. H&E staining of the BIN-67 tumours revealed follicle-like structures (Figure 2B) and small cells with scanty cytoplasm similar to the human disease (Figure 2C,D). Histological sections showed intense staining for vimentin and WT-1, moderate staining for KIT, Pgp9.5 and p53, and sporadic staining for cytokeratin and α-synaptophysin (Figure 2). In agreement with primary SCCOHT cancers, there is a lack of inhibin staining which helps to distinguish this tumour type from granulosa cell tumours that are typically inhibin immunoreactive. These observations are consistent with low expression values for KIT, UCHL1 (Pgp9.5), TP53, and INHA (inhibin α) in contrast to higher levels of expression of VIM and WT1 as determined using gene expression microarray analyses (Additional file2: Figure S2).
BIN-67 and SCCOHT exhibit low level chromosomal anomalies
SKY analysis of BIN-67 cells revealed a predominantly diploid (46,XX) cell population (>95% of cells), and a sub-population of tetraploid (92, XXXX) cells. The cells show a normal karyotype with the exception of a visibly shorter chromosome 20 contig, which was evident from both SKY analysis and Giemsa staining (Figure 3).

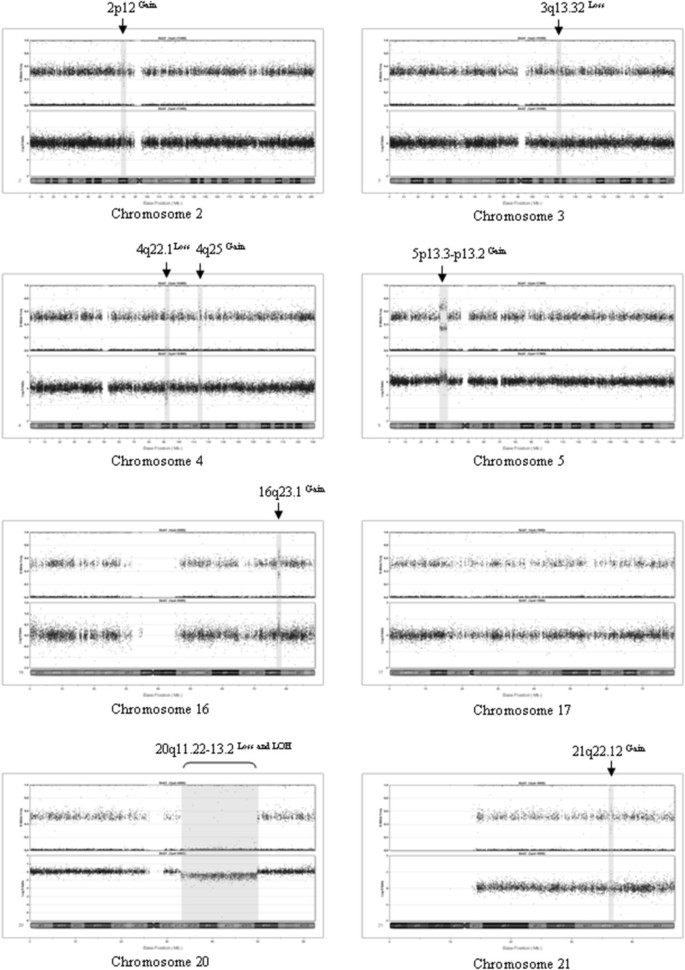

High-density SNP array analyses based on the Infinium™ HumanHap300-Duo BeadChip was used to further characterize genomic anomalies in BIN-67 cells (Figure 4). As summarized in Table 1, nine discrete copy number variations were detected ranging in size from approximately 97 Kb to 16.8 Mb. Copy number gain involved 2p12, 4q25, 5p13.3-p13.2, 16q23.1, and 21q22.12, and copy number loss involved 3q13.32, 4q22.1, and 20q11.22-q13.2. Loss of heterozygosity was detectable with the extensive region of copy number loss overlapping 20q11.22-q13.2. This observation along with karyotype analysis (Figure 3) suggests that this chromosome had undergone an intrachromosomal deletion.
To compare genomic landscapes, Affymetrix SNP 6.0 array analysis was performed on the BIN-67 cells and four SCCOHT samples: T1, T2, T3 and T4, and one matched normal sample (T4-N). A summary of the copy number variations is shown aligned to chromosomal position, displayed in a Circos plot in Figure 5. Discrete copy number variations were observed with all samples. Sample T4 was notable for exhibiting the largest number of genomic variations. Notable is that SNP array results of BIN-67 cells were concordant with that derived using the Infinium platform. Though the large 20q11.22-q13.2 deletion observed in BIN-67 was not detectable in any of the tumour specimens, there were many discrete anomalies (both gains and losses) that overlapped similar regions in the tumour samples and the BIN-67 sample that were not observed in the reference normal sample, suggesting that they may be unique to the development of SCCOHT. In total the BIN-67 sample had 100 discrete gains or losses, with 90 of these not found in the normal sample. Of these 90 gains or losses, 34 were found in at least one of the tumour samples, and one loss (chromosome 1; 151028548-151035325) was shared by all 4 tumour samples but not with the normal sample. Examples of some shared copy number variations are summarized in Additional file3: Table S1 and the complete Affymetrix SNP 6.0 array CRMAv2 and HMMDosage analysis can be found in Additional file4: Table S2.
BIN-67 mutational spectra exclude conventional genes
A sequence analysis was performed to determine if BIN-67 harboured mutations in TP53, KRAS and BRAF genes previously shown mutated in epithelial ovarian carcinomas. Mutation analysis did not detect any variants in the protein coding regions of TP53 nor in commonly mutated exons of KRAS and BRAF.
Gene expression profile targeted genomic regions affected in BIN-67
Transcriptome analysis of BIN-67 proved to be a challenge as there is no corresponding normal tissue available for comparison. We therefore focused our analysis on investigating the expression profile of genes located within regions exhibiting copy number gains, as these regions may contain genes exhibiting increased expression due to alterations in copy number as demonstrated in our previous analyses of ovarian cancer cell lines exhibiting distinct genomic amplification events, (Table 1). Although the cell type of origin of SCCOHT is not known, we compared the expression profiles to publicly available data representing OSE samples derived using the same gene expression microarray platform. Only genes mapping to the 4q25 and 5p13.3-p13.2 exhibited evidence of expression greater than 2-fold when compared with OSE samples (Additional file5: Figure S3). Of the three genes ALPK1, NEUROG2, and LARP7 exhibiting higher levels of expression in the 4q25 region, only ALPK1 and NEUROG2 consistently exhibited greater than 2-fold levels of expression when compared with each OSE sample. Of 5 of 28 genes that map to the 5p13.3-p13.2 region and exhibit greater than 2-fold difference in gene expression, only PDZD2, SUB1, PRLR and SKP2 consistently exhibited expression greater than 2-fold in two-way comparisons to each OSE sample (Additional file5: Figure S3).
Treatment with standard chemotherapeutics and oncolytic viruses
The high mortality of women with SCCOHT indicates a strong need to improve the current strategies for treatment. To investigate the response of BIN-67 cells to standard and novel treatments, we first examined the effect of carboplatin and cisplatin on BIN-67 viability. As controls, chemosensitive A2780s cells and chemoresistant A2780cp cells confirmed their differential sensitivity to carboplatin at concentrations of 5 and 10 μg/mL, with less than 25% viability for both cell lines at higher concentrations (Figure 6A). The normal MOSE cells remained viable (>70%) after exposure to concentrations up to 10 μg/mL, but viability was reduced at higher concentrations. In contrast, BIN-67 cells were exceptionally resistant, with 61% viability at the highest concentration of carboplatin tested (Figure 6A) and similar resistance to cisplatin-induced cell killing (Figure 6B). BIN-67 cells proved to be resistant to a non-platinum drug as well, with cell viability reduced to 64% after 72 hours of exposure to 10 μM taxol, compared with only 22% of A2780cp cells remaining viable (data not shown).
Since BIN-67 cells were resistant to conventional chemotherapeutics, we tested their response to novel treatments. Two oncolytic viruses, the vaccinia virus JX-594 and VSV, were tested for cytotoxic effects on the four cell lines. Treatment with GFP-tagged viruses showed that BIN-67 cells could be readily infected with both of these viruses (Additional file6: Figure S4). Infection with JX-594 significantly reduced BIN-67 cell viability at an MOI of 0.01, and this viability was reduced further to just 20% when the cells were exposed to an MOI of 0.1. The sensitivity of BIN-67 to JX-954 was greater than the response of the A2780s and A2780cp cells, whereas normal MOSE remained unaffected (Figure 6C). BIN-67 cells were also very sensitive to VSV-induced cell killing, with a significant (75%) decrease in viability evident at an MOI of 0.001, and just 7% cell viability at the higher MOIs (Figure 6D).
Small cell carcinoma is a rare tumour that is usually associated with the lung and/or cervix in females, but can occur rarely in the ovary. The biology of SCCOHT is poorly understood, but the relatively young age of SCCOHT patients and the difficulties associated with treating them warrant investigation of this very aggressive type of cancer. Given the challenges of studying the rare forms of cancer in humans, we have established and characterized a unique xenograft model of SCCOHT. Validation of this model was achieved by demonstrating its similarity to the human disease in its histological and immunohistochemical features, as well as the exhibition of hypercalcemia, which occurs in the majority of SCCOHT patients. The ability of BIN-67 cells to form spheroids in hanging drop cultures also has been observed in epithelial ovarian cancer cell lines that are tumourigenic in mouse xenograft models. Though the factors involved are not known, comparative transcriptome analyses of epithelial ovarian cancer cell line models have shown that spheroids and tumour xenografts were more similar in their expression profiles than when compared with transcriptomes derived from cell lines grown as monolayers in cultures[17, 24]. Notable also is that suppression of tumourigenic potential in at least one ovarian cancer cell line resulted in loss of both spheroid forming capacity and ability to form mouse tumour xenografts. The growth phenotypes exhibited by BIN-67 will enable further study of this unique model of SCCOHT to address progression and treatment of this disease.
Immunohistochemical staining of the BIN-67-derived tumours revealed a diagnostic expression pattern that is similar to that reported in humans, notably intense expression of WT-1 and vimentin and lack of expression of inhibin. The moderate levels of staining for p53 and KIT also resemble human cancers[8, 9]. In agreement with the 90% of human SCCOHT tumours that are immunoreactive for cytokeratins, we observed cytokeratin staining in the BIN-67 tumours, when detected using pan-cytokeratin antibodies. The limited, sporadic staining for α-synaptophysin was also as expected, since this is a neuroendocrine marker and is not often found in human SCCOHT.
Small cell carcinomas of the ovary are distinguished into two types: hypercalcemic and pulmonary type (SCCOPT). SCCOPT are so designated because of their similarities to small cell carcinomas of the lung. SCCOHT differ markedly from SCCOPT and from small cell lung cancers in clinical presentation, histological features and immunohistochemical markers. Small cell carcinomas of the lung and cervix are often associated with neuroendocrine differentiation as manifested by their histologic growth pattern, ultrastructure and expression of neuroendocrine markers, whereas the current consensus is that SCCOHT are not neuroendocrine in type. The moderate staining for PGP9.5, a neuroendocrine marker, in the BIN-67 tumours was therefore unexpected. PGP9.5 (UCHL-1) is a neurospecific peptide that functions to remove ubiquitin from ubiquitinated proteins and prevents them from targeted degradation by proteasomes. It is abundantly expressed in small cell lung and cervical cancers[25, 26], which are both neuroendocrine tumours. To our knowledge, the expression of PGP9.5 has not previously been examined in SCCOHT, and so it remains unclear whether its expression in the BIN-67 tumours is an unanticipated feature of this type of tumour or whether xenografting these cells had modified their behaviour.
Known as a paraneoplastic disorder, humoral hypercalcemia presents in a variety of cancers, including squamous cell carcinoma of lung, adenocarcinoma of gastrointestinal tract, and small cell carcinoma of ovary. The hypercalcemia may be caused by the secretion of parathyroid hormone related protein (PTHrp) by the tumour cells, which can act through PTH receptors to mediate the calcium release[27–30]. The hypercalcemia observed in the mice with BIN-67-derived tumours therefore reflects well the hypercalcemia that occurs in the majority of patients with SCCOHT.
BIN-67 lacks the mutational spectrum characteristic of the major histopathological subtypes of ovarian cancer. The low level of chromosomal anomalies and absence of TP53 mutations distinguishes BIN-67 cells from high-grade ovarian serous carcinomas[31, 32]. The absence of KRAS/BRAF mutation also distinguishes BIN-67 from low-grade ovarian serous carcinomas and mucinous cancers[33, 34]. The low level of chromosomal anomalies was also observed with three of the four SCCOHT, suggesting that a modest alteration in genomic landscape may be characteristic of this type of cancer. One genomic anomaly was common to all four SCCOHT patient tumour samples and the BIN-67 cells, but not the matched normal sample. This loss occurred in the region of chromosome 1 containing the MLLT11 gene (myeloid/lymphoid or mixed-lineage leukemia (trithorax homolog, Drosophila); translocated to, 11), making this a potentially interesting gene to study in SCCOHT. MLLT11, also known as AF1Q, has been reported to be an oncogenic factor involved in the development of leukemia and thyroid tumours, and breast cancer metastasis[35–37].
The 5p13.3-p13.2 interval gained in BIN-67 has been shown to be amplified in various cancer types, including ovarian cancer. Although various amplicons have been described, PDZD2, GOLPH3, PRLR and SKP2 have emerged as potential targets, which is interesting given their gene expression profile in BIN-67 cells. PDZD2 may be involved in intracellular signaling and is overexpressed in prostate cancer and associated with the initiation or early events in tumourigenesis. Paradoxically, it has recently been shown to induce either senescence or apoptosis in cancer cells via transcriptional activation of TP53. GOLPH3, which encodes a peripheral membrane protein of the Golgi stack and may have a regulatory role in Golgi trafficking, was recently shown to enhance growth-factor-induced mTOR signaling and consequently alter response to rapamycin, an mTOR inhibitor, in cancer cells. Further investigation of BIN-67 cells for sensitivity to rapamycin is warranted given the potential of identifying new targets for chemotherapy as this drug is in clinical use.
PRLR encodes the prolactin receptor, which may function to modulate endocrine and autocrine effects of prolactin in normal and cancer tissues, and has been extensively studied as a potential therapeutic target in breast cancer [reviewed in. It was recently shown to be associated with increasing survival and migration of ovarian cancer cells and was proposed as a potential therapeutic target for receptor antagonists for ovarian cancer. Although PDZD2 and GOLPHA3 are potential targets of amplification in BIN-67, SKP2, which encodes a member of the F-Box protein family S-phase kinase-associated protein 2 (p45), is an established oncogene, and has been extensively studied as a therapeutic target. SKP2 protein overexpression in epithelial ovarian cancers has been reported[44, 45] and this expression signature has been proposed as a prognostic factor[46, 47].
The gain of the 4q25 interval in BIN-67 is interesting, as it contains LARP7, which encodes PIP7S, recently shown to bind and stabilize all the nuclear 7SK RNA leading to inactivation of a general transcription factor P-TEFb that stimulates RNA polymerase II elongation and cotranscriptional processing of pre-mRNA. Knockdown of PIP7S with shRNA in a normal human mammary epithelial cell line shifts the P-TEFb equilibrium and causes disrupted epithelial differentiation, P-TEFb-dependent malignant transformation and activation of key tumour-related genes, which is consistent with the tumour suppressor function of its Drosophila homolog.
The prognosis of women with SCCOHT is very poor, largely due to the lack of effective treatments; however, there have been some case reports of long-term survival with a multi-modality approach to treatment. Tewari et al. reported a case of SCCOHT diagnosed during pregnancy that was treated with cytoreductive surgery and multi-agent chemotherapy (vinblastine, cisplatin, cyclophosphamide, bleomycin, doxorubicin, and etoposide). The patient was alive and without evidence of disease 5.5 years after diagnosis. Treatment with conservative surgery and the same chemotherapy agents resulted in a 19 year old patient with advanced-stage (Stage IIIC) SCCOHT doing well more than 2 years after completion of treatment. A more recent multi-national retrospective analysis of the management of 17 SCCOHT patients resulted in the recommendation of multi-modality treatment approaches including surgery and chemotherapy with the addition of radiotherapy either sequentially or concurrently.
Despite these reports, the prognosis and outcome for the majority of patients diagnosed with SCCOHT remains poor and better treatment options are needed. Oncolytic virus therapy is an innovative alternative to conventional cancer therapies and is based on the concept that it is possible to select or engineer viruses to preferentially replicate in and kill tumour cells[11, 53–55]. This cancer cell selectivity is at least in part due to an acquired, tumour-specific defect in cellular innate antiviral responses. Oncolytic vaccinia viruses are currently positioned for testing in Phase III clinical trials and VSV is a prototypical rhabdovirus that grows poorly in normal tissues but replicates efficiently in cells lacking an intact IFN response. Both oncolytic viruses efficiently infected the BIN-67 cells, resulting in a loss of cell viability by as much as 93%. In contrast, BIN-67 cells showed marked resistance to carboplatin, cisplatin and taxol, chemotherapeutic agents commonly used for the treatment of ovarian cancer. This resistance was greater than that shown by the A2780cp cells, an epithelial ovarian cancer cell line commonly used to study the mechanisms of chemoresistance. These results suggest that platinum drugs may not be the optimal treatment for SCCOHT and that therapeutic use of oncolytic viruses should be investigated further for the treatment of SCCOHT, as well as other ovarian cancers.
Although the establishment of other SCCOHT-derived cell lines has been periodically reported[58, 59], it appears that none have been investigated beyond the initial reports. The demonstration that BIN-67 cells can form spheroids in vitro and tumours in vivo provide two novel model systems with potential value for preclinical drug screening. Spheroid models have been shown to better mimic the in vivo tumour gene expression patterns than monolayer cultures, as have been demonstrated in comparative transcriptome profiling analyses[17, 24]. BIN-67 cells therefore provide the rare opportunity to investigate the biology of SCCOHT cells and tumours. Further characterization of this rare form of ovarian cancer may help to determine the origins of this disease as well as increase the number of therapeutic options.
Dickersin GR, Kline IW, Scully RE: Small cell carcinoma of the ovary with hypercalcemia: a report of eleven cases. Cancer. 1982, 49: 188-197. 10.1002/1097-0142(19820101)49:1<188::AID-CNCR2820490137>3.0.CO;2-D.
Clement PB: Selected miscellaneous ovarian lesions: small cell carcinomas, mesothelial lesions, mesenchymal and mixed neoplasms, and non-neoplastic lesions. Mod Pathol. 2005, 18: S113-S129.
Barondeau J, Rodgers M, Braun L, Azarow K, Forouhar M, Faucette M: Small cell ovarian carcinoma: a rare, aggressive tumor masquerading as constipation in a teenager with a fatal outcome. J Pediatr Hematol Oncol. 2010, 32: e139-141. 10.1097/MPH.0b013e3181bdbc8d.
Martinez-Borges AR, Petty JK, Hurt G, Striblin JT, Press JZ, Castelinno SM: Familial small cell carcinoma of the ovary. Pediatr Blood Cancer. 2009, 53: 1334-1336. 10.1002/pbc.22184.
Young RH, Oliva E, Scully RE: Small cell carcinoma of the ovary, hypercalcemic type. A clinicopathological analysis of 150 cases. Am J Surg Pathol. 1994, 18: 1102-1116. 10.1097/00000478-199411000-00004.
Pautier P, Ribrag V, Duvillard P, Rey A, Elghissassi I, Sillet-Bach I, Kerbrat P, Mayer F, Lesoin A, Brun B, Crouet H, Barats JC, Morice P, Lhommé C: Results of a prospective dose-intensive regimen in 27 patients with small cell carcinoma of the ovary of the hypercalcemic type. Ann Oncol. 2007, 18: 1985-1989. 10.1093/annonc/mdm376.
Powell JL, McAfee RD, McCoy RC, Shiro BS: Uterine and ovarian conservation in advanced small cell carcinoma of the ovary. Obstet Gynecol. 1998, 91: 846-848. 10.1016/S0029-7844(98)00025-8.
Carlson JW, Nucci MR, Brodsky J, Crum CP, Hirsch MS: Biomarker-assisted diagnosis of ovarian, cervical and pulmonary small cell carcinomas: the role of TTF-1, WT-1 and HPV analysis. Histopathology. 2007, 51: 305-312. 10.1111/j.1365-2559.2007.02790.x.
McCluggage WG, Oliva E, Connolly LE, McBride HA, Young RH: An immunohistochemical analysis of ovarian small cell carcinoma of hypercalcemic type. Int J Gynecol Pathol. 2004, 23: 330-336. 10.1097/01.pgp.0000139644.38835.9d.
Upchurch KS, Parker LM, Scully RE, Krane SM: Differential cyclic AMP responses to calcitonin among human ovarian carcinoma cell lines: a calcitonin-responsive line derived from a rare tumor type. J Bone Miner Res. 1986, 1: 299-304.
Breitbach CJ, Reid T, Burke J, Bell JC, Kirn DH: Navigating the clinical development landscape for oncolytic viruses and other cancer therapeutics: no shortcuts on the road to approval. Cytokine Growth Factor Rev. 2010, 21: 85-89. 10.1016/j.cytogfr.2010.02.001.
Lemay CG, Rintoul JL, Kus A, Paterson JM, Garcia V, Falls TJ, Ferreira L, Bridle BW, Conrad DP, Tang VA, Diallo JS, Arulanandam R, Le Boeuf F, Garson K, Vanderhyden BC, Stojdl DF, Lichty BD, Atkins HL, Parato KA, Bell JC, Auer RC: Harnessing oncolytic virus-mediated antitumor immunity in an infected cell vaccine. Mol Ther. 2012, Epub ahead of print
Thorne SH, Hwang TH, O'Gorman WE, Bartlett DL, Sei S, Kanji F, Brown C, Werier J, Cho JH, Lee DE, Wang Y, Bell JC, Kirn DH: Rational strain selection and engineering creates a broad-spectrum, systemically effective oncolytic poxvirus, JX-963. J Clin Invest. 2007, 117: 3350-3358. 10.1172/JCI32727.
Nguyên TL, Abdelbary H, Arguello M, Breitbach C, Leveille S, Diallo JS, Yasmeen A, Bismar TA, Kirn D, Falls T, Snoulten VE, Vanderhyden BC, Werier J, Atkins H, Vähä-Koskela MJ, Stojdl DF, Bell JC, Hiscott J: Chemical targeting of the innate antiviral response by histone deacetylase inhibitors renders refractory cancers sensitive to viral oncolysis. Proc Natl Acad Sci USA. 2008, 105: 14981-14986. 10.1073/pnas.0803988105.
Clark-Knowles KV, Garson K, Jonkers J, Vanderhyden BC: Conditional inactivation of Brca1 in the mouse ovarian surface epithelium results in an increase in preneoplastic changes. Exp Cell Res. 2007, 313: 133-145. 10.1016/j.yexcr.2006.09.026.
Louie KG, Behrens BC, Kinsella TJ, Hamilton TC, Grotzinger KR, McKoy WM, Winker MA, Ozols RF: Radiation survival parameters of antineoplastic drug-sensitive and -resistant human ovarian cancer cell lines and their modification by buthionine sulfoximine. Cancer Res. 1985, 45: 2110-2115.
Zietarska M, Maugard CM, Filali-Mouhim A, Alam-Fahmy M, Tonin PN, Provencher DM, Mes-Masson AM: Molecular description of a 3D in vitro model for the study of epithelial ovarian cancer (EOC). Molec Carcinogen. 2007, 46: 872-885. 10.1002/mc.20315.
Birch AH, Arcand SL, Oros KK, Rahimi K, Watters AK, Provencher D, Greenwood CM, Mes-Masson AM, Tonin PN: Chromosome 3 anomalies investigated by genome wide SNP analysis of benign, low malignant potential and low grade ovarian serous tumours. PLoS One. 2011, 6: e28250-10.1371/journal.pone.0028250.
Heravi-Moussavi A, Anglesio MS, Cheng SW, Senz J, Yang W, Prentice L, Fejes AP, Chow C, Tone A, Kalloger SE, Hamel N, Roth A, Ha G, Wan AN, Maines-Bandiera S, Salamanca C, Pasini B, Clarke BA, Lee AF, Lee CH, Zhao C, Young RH, Aparicio SA, Sorensen PH, Woo MM, Boyd N, Jones SJ, Hirst M, Marra MA, Gilks B, Shah SP, Foulkes WD, Morin GB, Huntsman DG: Recurrent somatic DICER1 mutations in nonepithelial ovarian cancers. N Engl J Med. 2012, 366: 234-242. 10.1056/NEJMoa1102903.
Curtis C, Shah SP, Chin SF, Turashvili G, Rueda OM, Dunning MJ, Speed D, Lynch AG, Samarajiwa S, Yuan Y, Gräf S, Ha G, Haffari G, Bashashati A, Russell R, McKinney S, Langerød A, Green A, Provenzano E, Wishart G, Pinder S, Watson P, Markowetz F, Murphy L, Ellis I, Purushotham A, Børresen-Dale AL, Brenton JD, Tavaré S, Caldas C, Aparicio S, METABRIC Group: The genomic and transcriptomic architecture of 2,000 breast tumours reveals novel subgroups. Nature. 2012, 486: 346-352.
Krzywinski M, Schein J, Birol I, Connors J, Gascoyne R, Horsman D, Jones SJ, Marra MA: Circos: an information aesthetic for comparative genomics. Genome Res. 2009, 19: 1639-1645. 10.1101/gr.092759.109.
Veldman T, Vignon C, Schröck E, Rowley JD, Ried T: Hidden chromosome abnormalaties in haematological malignancies detected by multicolour spectral karyotyping. Nat Genet. 1997, 15: 406-410.
Arcand SL, Mes-Masson AM, Provencher D, Hudson TJ, Tonin PN: Gene expression microarray analysis and genome databases facilitate the characterization of a chromosome 22 derived homogeneously staining region. Mol Carcinog. 2004, 41: 17-38. 10.1002/mc.20038.
Cody N, Zietarska M, Filali-Mouhim A, Provencher DM, Mes-Masson AM, Tonin PN: Influence of monolayer, spheroid, and tumor growth conditions on chromosome 3 gene expression in tumorigenic epithelial ovarian cancer cell lines. BMC Med Genomics. 2008, 1: 34-10.1186/1755-8794-1-34.
Hibi K, Westra WH, Borges M, Goodman S, Sidransky D, Jen J: PGP9.5 as a candidate tumor marker for non-small-cell lung cancer. Am J Pathol. 1999, 155: 711-715. 10.1016/S0002-9440(10)65169-3.
McCluggage WG, Kennedy K, Busam KJ: An immunohistochemical study of cervical neuroendocrine carcinomas: Neoplasms that are commonly TTF1 positive and which may express CK20 and P63. Am J Surg Pathol. 2010, 34: 525-532. 10.1097/PAS.0b013e3181d1d457.
Nagasaki K, Otsubo K, Kajimura N, Tanaka R, Watanabe H, Tachimori Y, Kato H, Yamaguchi H, Saito D, Watanabe T, Adachi I, Yamaguchi K: Circulating parathyroid hormone-related protein (109–141) in malignancy-associated hypercalcemia. Jpn J Clin Oncol. 1996, 26: 6-11. 10.1093/oxfordjournals.jjco.a023180.
Tsunematsu T, Saito T, Iguchi H, Fukuda T, Tsukamoto N: Hypercalcemia due to parathyroid hormone-related protein produced by primary ovarian clear cell adenocarcinoma: case report. Gynecol Oncol. 2000, 76: 218-222. 10.1006/gyno.1999.5619.
Suva LJ, Winslow GA, Wettenhall RE, Hammonds RG, Moseley JM, Diefenbach-Jagger H, Rodda CP, Kemp BE, Rodriguez H, Chen EY, Hudson PJ, Martin TJ, Wood WI: A parathyroid hormone-related protein implicated in malignant hypercalcemia: cloning and expression. Science. 1987, 237: 893-896. 10.1126/science.3616618.
Mangin M, Webb AC, Dreyer BE, Posillico JT, Ikeda K, Weir EC, Stewart AF, Bander NH, Milstone L, Barton DE, Francke U, Broadus AE: Identification of a cDNA encoding a parathyroid hormone-like peptide from a human tumor associated with humoral hypercalcemia of malignancy. Proc Natl Acad Sci USA. 1988, 85: 597-601. 10.1073/pnas.85.2.597.
Cancer Genome Atlas Research Network: Integrated genomic analyses of ovarian carcinoma. Nature. 2011, 474: 609-615. 10.1038/nature10166.
Singer G, Stöhr R, Cope L, Dehari R, Hartmann A, Cao DF, Wang TL, Kurman RJ, Shih IM: Patterns of p53 mutations separate ovarian serous borderline tumors and low- and high-grade carcinomas and provide support for a new model of ovarian carcinogenesis: a mutational analysis with immunohistochemical correlation. Am J Surg Pathol. 2005, 29: 218-224. 10.1097/01.pas.0000146025.91953.8d.
Cuatrecasas M, Villanueva A, Matias-Guiu X, Prat J: K-ras mutations in mucinous ovarian tumors: a clinicopathologic and molecular study of 95 cases. Cancer. 1997, 79: 1581-1586. 10.1002/(SICI)1097-0142(19970415)79:8<1581::AID-CNCR21>3.0.CO;2-T.
Schuyer M, Henzen-Logmans SC, Van der Burg ME, Fieret JH, Derksen C, Look MP, Meijer-van Gelder ME, Klijn JG, Foekens JA, Berns EM: Genetic alterations in ovarian borderline tumours and ovarian carcinomas. Eur J Obstet Gynecol Reprod Biol. 1999, 82: 147-150. 10.1016/S0301-2115(98)00217-6.
Tse W, Zhu W, Chen HS, Cohen A: A novel gene, AF1q, fused to MLL in t(1;11) (q21;q23), is specifically expressed in leukemic and immature hematopoietic cells. Blood. 1995, 85: 650-656.
Jacques C, Baris O, Prunier-Mirebeau D, Savagner F, Rodien P, Rohmer V, Franc B, Guyetant S, Malthiery Y, Reynier P: Two-step differential expression analysis reveals a new set of genes involved in thyroid oncocytic tumors. J Clin Endocrinol Metab. 2005, 90: 2314-2320. 10.1210/jc.2004-1337.
Li DQ, Hou YF, Wu J, Chen Y, Lu JS, Di GH, Ou ZL, Shen ZZ, Ding J, Shao ZM: Gene expression profile analysis of an isogenic tumour metastasis model reveals a functional role for oncogene AF1Q in breast cancer metastasis. Eur J Cancer. 2006, 42: 3274-3286. 10.1016/j.ejca.2006.07.008.
Chaib H, Rubin MA, Mucci NR, Li L, Taylor JMG, Day ML, Rhim JS, Macoska JA: Activated in prostate cancer: a PDZ domain-containing protein highly expressed in human primary prostate tumors. Cancer Res. 2001, 61: 2390-2394.
Tam CW, Liu VW, Leung WY, Yao KM, Shiu SY: The autocrine human secreted PDZ domain-containing protein 2 (sPDZD2) induces senescence or quiescence of prostate, breast and liver cancer cells via transcriptional activation of p53. Cancer Lett. 2008, 271: 64-80. 10.1016/j.canlet.2008.05.047.
Scott KL, Kabbarah O, Liang MC, Ivanova E, Anagnostou V, Wu J, Dhakal S, Wu M, Chen S, Feinberg T, Huang J, Saci A, Widlund HR, Fisher DE, Xiao Y, Rimm DL, Protopopov A, Wong KK, Chin L: GOLPH3 modulates mTOR signalling and rapamycin sensitivity in cancer. Nature. 2009, 459: 1085-1090. 10.1038/nature08109.
Jacobson EM, Hugo ER, Tuttle TR, Papoian R, Ben-Jonathan N: Unexploited therapies in breast and prostate cancer: blockade of the prolactin receptor. Trends Endocrinol Metab. 2010, 21: 691-698. 10.1016/j.tem.2010.08.004.
Tan D, Chen KE, Khoo T, Walker AM: Prolactin increases survival and migration of ovarian cancer cells: Importance of prolactin receptor type and therapeutic potential of S179D and G129R receptor antagonists. Cancer Lett. 2011, 310: 101-108. 10.1016/j.canlet.2011.06.014.
Frescas D, Pagano M: Deregulated proteolysis by the F-box proteins SKP2 and beta-TrCP: tipping the scales of cancer. Nat Rev Cancer. 2008, 8: 438-449. 10.1038/nrc2396.
Uddin S, Ahmed M, Hussain AR, Jehan Z, Al-Dayel F, Munkarah A, Bavi P, Al-Kuraya KS: Bortezomib-mediated expression of p27Kip1 through S-phase kinase protein 2 degradation in epithelial ovarian cancer. Lab Invest. 2009, 89: 1115-1127. 10.1038/labinvest.2009.75.
Yamamoto S, Tsuda H, Miyai K, Takano M, Tamai S, Matsubara O: Cumulative alterations of p27-related cell-cycle regulators in the development of endometriosis-associated ovarian clear cell adenocarcinoma. Histopathology. 2010, 56: 740-749. 10.1111/j.1365-2559.2010.03551.x.
Shigemasa K, Gu L, O'Brien TJ, Ohama K: Skp2 overexpression is a prognostic factor in patients with ovarian adenocarcinoma. Clin Cancer Res. 2003, 9: 1756-1763.
Sui L, Dong Y, Watanabe Y, Yamaguchi F, Sugimoto K, Tokuda M: Clinical significance of Skp2 expression, alone and combined with Jab1 and p27 in epithelial ovarian tumors. Oncol Rep. 2006, 15: 765-771.
He N, Jahchan NS, Hong E, Li Q, Bayfield MA, Maraia RJ, Luo K, Zhou Q: A La-related protein modulates 7SK snRNP integrity to suppress P-TEFb-dependent transcriptional elongation and tumorigenesis. Mol Cell. 2008, 29: 588-599. 10.1016/j.molcel.2008.01.003.
Remillieux-Leschelle N, Santamaria P, Randsholt NB: Regulation of larval hematopoiesis in Drosophila melanogaster: a role for the multi sex combs gene. Genetics. 2002, 162: 1259-1274.
Tewari K, Brewer C, Cappuccini F, Macri C, Rogers LW, Berman ML: Advanced-stage small cell carcinoma of the ovary in pregnancy: long-term survival after surgical debulking and multiagent chemotherapy. Gynecol Oncol. 1997, 66: 531-534. 10.1006/gyno.1997.4801.
Rana S, Warren BK, Yamada SD: Stage IIIC small cell carcinoma of the ovary: survival with conservative surgery and chemotherapy. Obstet Gynecol. 2004, 103: 1120-1123. 10.1097/01.AOG.0000124996.56880.d9.
Harrison ML, Hoskins P, du Bois A, Quinn M, Rustin GJ, Ledermann JA, Baron-Hay S, Friedlander ML: Small cell of the ovary, hypercalcemic type – analysis of combined experience and recommendation for management. A GCIG study. Gynecol Oncol. 2006, 100: 233-238. 10.1016/j.ygyno.2005.10.024.
Bell JC: Oncolytic viruses: what’s next?. Curr Cancer Drug Targets. 2007, 7: 127-131. 10.2174/156800907780058844.
Crompton AM, Kirn DH: From ONYX-015 to armed vaccinia viruses: the education and evolution of oncolytic virus development. Curr Cancer Drug Targets. 2007, 7: 133-139. 10.2174/156800907780058862.
Parato KA, Senger D, Forsyth PA, Bell JC: Recent progress in the battle between oncolytic viruses and tumours. Nat Rev Cancer. 2005, 5: 965-976.
Dunn GP, Koebel CM, Schreiber RD: Interferons, immunity and cancer immunoediting. Nat Rev Immunol. 2006, 6: 836-848. 10.1038/nri1961.
Lichty BD, Stojdl DF, Taylor RA, Miller L, Frenkel I, Atkins H, Bell JC: Vesicular stomatitis virus: a potential therapeutic virus for the treatment of hematologic malignancy. Hum Gene Ther. 2004, 15: 821-831. 10.1089/hum.2004.15.821.
Walt H, Hornung R, Fink D, Dobler-Girdziunaite D, Stallmach T, Spycher MA, Maly F, Haller U, Bürki N: Hypercalcemic-type of small cell carcinoma of the ovary: characterization of a new tumor line. Anticancer Res. 2001, 21: 3253–-3259.
Ohi S, Niimi S, Okada N, Yamada K, Tachibana T, Hashimoto H, Nakajima M, Yasuda M, Tanaka T, Sato K, Ishikawa H: Establishment and characterization of a human ovarian small cell carcinoma, hypercalcemic type, cell line (OS-1) secreting PTH, PthrP and ACTH–special reference to the susceptibility of anti-cancer drugs. Hum Cell. 2004, 17: 203-209.
The authors would like to thank Laura Laviolette and Olga Collins for their assistance with the xenografts, blood sampling and establishment and maintenance of the BIN-67 cultures, and Dr. Blaise Clarke and the UHN Program in Biospecimen Sciences for access to clinical specimens. This research was funded in part by a donation from the family and friends of Natasha Novoa through Ovarian Cancer Canada to B.C.V. The Research Institute of the McGill University Health Centre receives support from the Fonds de recherche Québec Santé. This research was also funded in part by grants from the Fonds de recherche Québec Santé and Canadian Institute of Health Research to P.N.T.
The authors declare that they have no competing interests.
LFG carried out the xenografts, measured iCa levels and prepared the initial draft of the manuscript. KG performed the spheroid formation assays, analysed the gene expression microarray and Illumina SNP array, drafted sections of manuscript and edited drafts of the manuscript. MM and CD performed and analysed the experiments testing platinum chemotherapies and oncolytic viruses. CC performed all the immunohistochemistry. VB performed the initial experiments testing VSV on cell lines. SLA carried out the gene specific mutation analyses and Illumina SNP array analyses. JAS analyzed the spectral and Giemsa karyotyping. DGH performed and analysed the Affymetrix SNP array. PNT analysed the gene expression microarray and Illumina SNP array, drafted sections of manuscript, and edited drafts of the manuscript. BCV conceived of the conceptual plan for the project and experimental design for the xenografts and therapeutic testing; wrote sections and edited drafts of the manuscript. All authors read and approved the final manuscript.
