Clinical and molecular characterization of craniofrontonasal syndrome: new symptoms and novel pathogenic variants in the EFNB1 gene
Orphanet Journal of Rare Diseases volume 16, Article number: 286 (2021)
Craniofrontonasal syndrome (CFNS) is a rare X-linked disorder that results from pathogenic variants in the EFNB1 gene. The syndrome paradoxically presents with greater severity of the symptoms in heterozygous females than hemizygous males.
We have recruited and screened a female cohort affected with CFNS. Our primary finding was the description of monozygotic twins, i.e., patients 5 and 6, discordant for the CFNS phenotype. Intriguingly, patient 5 presented classical CFNS gestalt, whereas patient 6 manifested only very subtle craniofacial features, not resembling CFNS. Besides, we have expanded the mutational spectrum of the EFNB1 gene through reporting four novel pathogenic variants—p.(Trp12*), p.(Cys64Phe), p.(Tyr73Metfs*86), p.(Glu210*). All those alterations were found applying either targeted NGS of a custom gene panel or PCR followed by Sanger sequencing and evaluated using in silico predictors. Lastly, we have also expanded the CFNS phenotypic spectrum by describing in patient 3 several novel features of the syndrome, such as bifid hallux, bicornuate uterus, and abnormal right ovary segmented into six parts.
We have described the unreported so far differences of the clinical phenotype in the monozygotic twin patients 5 and 6 harboring an identical p.(Glu210*) variant located in the EFNB1 gene. With our finding, we have pointed to an unusual phenomenon of mildly affected females with CFNS, who may not manifest features suggestive of the syndrome. Consequently, this study may be valuable for geneticists consulting patients with craniofacial disorders.
Craniofrontonasal syndrome (CFNS; MIM: 304110) is a rare X-linked disorder that inherits in a paradoxical manner, exceptionally presenting greater severity of symptoms in heterozygous females than hemizygous males [1, 2]. The clinical picture in the affected females encompasses coronal craniosynostosis (CS), frontal bossing, hypertelorism, depressed nasal bridge, bifid nose, craniofacial asymmetry, downslanting palpebral fissures, frizzy and curly hair, syndactyly and longitudinally ridged fingernails. Intriguingly, many symptomatic hemizygous men show merely hypertelorism with no other congenital anomalies or major facial dysmorphism [3, 4].
Wieacker and Wieland in 2005 explained the above paradox as a cellular interference, which assumes that due to a random X-inactivation, heterozygous females are uniquely mosaic and therefore have both functional and nonfunctional ephrin-B1, a protein which is encoded by the EFNB1 gene . These two ephrin-B1 forms’ coexistence affects the adhesion and sorting of cells, disrupting normal embryological development [6, 7]. Further reports describing more severely affected males, who all were mosaic for deleterious variants in the EFNB1, strengthen the hypothesis about the described pathomechanism’s biological relevance . However, the precise molecular explanation for this phenomenon remains not yet fully understood .
We recruited four sporadic female individuals (patients 1–4) and one familial case consisting of two female individuals (patient 5 and 6), out of whom all but one, i.e., patient 6, presented phenotypic features suggestive of CFNS.
Targeted next-generation sequencing NGS
We designed and applied the custom On-Demand AmpliSeq (ThermoFisher Scientific) panel targeting 37 genes related to craniofacial disorders [9, 10]. We constructed the barcoded gDNA libraries according to the manufacturer’s sample preparation protocol (Ion AmpliSeq Library Kit 2.0; On-Demand Panels) and subsequently sequenced them on the Ion Torrent S5 platform using the Ion 530™ or 540™ Chip.
PCR and Sanger sequencing
PCR followed by Sanger sequencing was used to validate variants detected through targeted NGS (patient 1 and 5) and screen the coding sequence of the EFNB1 gene (patients 2–4). Besides, we performed targeted Sanger sequencing in the twin sister of patient 6 (targeted analysis of exon 4). We designed specific primers (Additional file 1: Table S1) using Primer3 tool v. 0.4.0. The PCR reactions and PCR product purifications were carried out following standard protocols. Next, Sanger sequencing was performed on an automated sequencer Applied Biosystems Prism 3700 DNA Analyzer using dye-terminator chemistry kit v.3, ABI 3130XL. Finally, the variant was visualized by applying the BioEdit tool and annotated against the reference EFNB1 sequence NM_004429.4 following the Human Genome Variation Society (HGVS) nomenclature guidelines.
We used Devyser Complete v2 kit (Devyser, Sweden) following the manufacturer’s protocol to analyze the twin sisters zygosity status (patient 5 and 6). The kit contains 33 short tandem repeats (STRs) markers localized on 13, 18, 21, X and Y chromosomes.
X chromosome inactivation (XCI) assay
We performed an XCI assay based on the methylation specificity of restriction enzymes at STRs located within the AR gene (patient 5 and 6). We used HpaII restriction endonuclease that presents a particular activity only on unmethylated gDNA. 100 ng of gDNA was digested with either 20 U RsaI (reference sample) or a mixture of enzymes, i.e. 20 U RsaI and 20 U HpaII (Thermo Fisher Scientific). After incubation and inactivation of enzymes, we performed PCR amplification. The reaction was set up using FAM-labeled primers 5′-TCCAGAATCTGTTCCAGAGCGTGC-3 (forward), 5′-GCTGTGAAGGTTGCTGTTCCTCAT-3 (reverse) as described by Janczar et al. [11, 12]. We separated the PCR products on an ABI 3130 DNA sequencing analyzer (Applied Biosystems) and analyzed in GeneMarker software v2.7.0 (SoftGenetics). The area under the peak was calculated and normalized .
We used the Face2Gene tool to test whether the craniofacial symptoms present in twin patients 5 and 6 were characteristic of CFNS. Face2Gene’s inbuilt algorithm quantifies facial gestalt based on hundreds of photographs of specific and confirmed syndrome patients. As a result, a list of possibly matching syndromes is created and ranked with a score called Gestalt Score.
We recruited six female cases, out of whom all but one, i.e., patient 6, presented with phenotypic characteristics suggestive for CFNS. The comparison of all clinical features noted in our cohort was outlined in Table 1. The extended clinical description was presented in what follows only for those cases with either additional or unusual CFNS manifestation (patients 3, 5 and 6).
Patient 3 was a girl born in the 40th week of gestation from 8th pregnancy to unrelated healthy parents (Fig. 1a–c). The pregnancy history was unremarkable. Her body mass was 5100 g (> 97th percentile), length 59 cm (> 97th percentile), Apgar score was 8–10–10 at 1′, 3′ and 5′. In addition to classical CFNS symptoms, she presented also a bifid hallux (Fig. 1a–c) bicornuate uterus, abnormal right ovary segmented into six parts by five serpentine-like constrictions, with the largest ovary part of 1.5 cm, while the smallest one of 0.5 cm in diameter. She also showed congenital horizontal nystagmus, alternating divergent strabismus, defects of the genitourinary system, including horseshoe kidney. MRI revealed hypoplastic corpus callosum, whereas cerebellum and brainstem were unchanged. All this features have not been noted among patients affected with CFNS thus far.
Patient 5 was a girl born in the 38th week of gestation from 4th pregnancy twined to unrelated healthy parents (Fig. 1i). The pregnancy history was unknown because patient 5 was adopted. Her body mass was 2370 g (< 3rd percentile), length 49 cm (< 3rd percentile), Apgar score was 8–10–10 at 1’, 3’ and 5’. She was referred for dysmorphic evaluation at 1st month of age. She had a coarse face, plagiocephaly, CS, micrognathia, a small anterior fontanel, significant hypertelorism, bilateral epicanthal folds, bilateral low-set ears, flat nasal bridge, anteverted nares, and a midline crease of the nasal tip. Brachydactyly, syndactyly of toes and longitudinal ridging of a finger- and toenails were also observed (Fig. 1d–g). On examination at the age of 5.5 months, she presented with a weight of 6110 g (< 3rd centile) and head circumference of 37.8 cm (< 3rd centile).
Patient 6 was a girl born in the 38th week of gestation from 4th pregnancy twined to unrelated healthy parents (Fig. 1i). The pregnancy history was unknown because patient 6 was adopted. Her body mass was 2330 g (< 3rd percentile), length 50 cm (< 3rd percentile), Apgar score was 8–8–9 at 1’, 3’, 5’ and 10’. She was referred for dysmorphic evaluation at 4th month of age since her twin sister obtained a diagnosis of CFNS. She had mild coarse facial features, anteverted nares, depressed nasal bridge, short neck and longitudinal ridging of fingernails and toenails (Fig. 1h).
Targeted NGS and Sanger sequencing

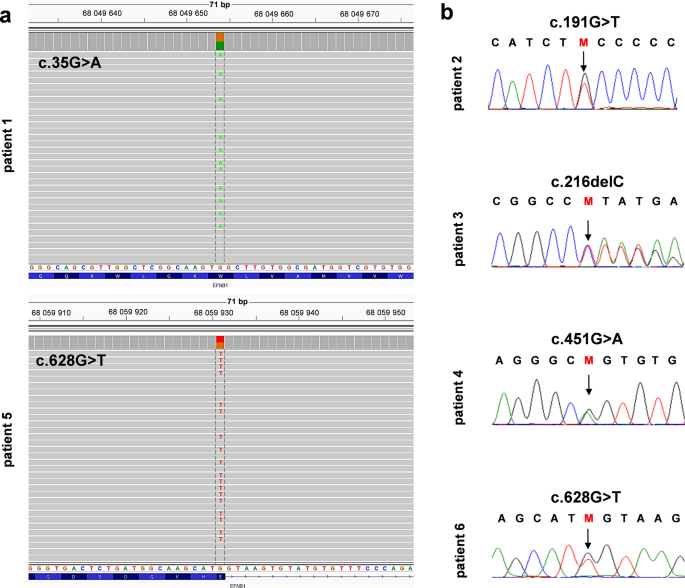

gDNA (isolated from peripheral blood lymphocytes) of Patients 1 and 5 was subject to targeted NGS of a custom gene panel that revealed two novel heterozygous variants in the EFNB1 gene—c.35G>A p.(Trp12*) and c.628G>T p.(Glu210*), respectively (Fig. 2a). The presence of both alterations was confirmed by Sanger sequencing. Patients 2–4 were screened before the advent of the NGS method. Thus, the molecular diagnosis was achieved by Sanger sequencing on gDNA isolated from peripheral blood lymphocytes, which revealed the presence of the following three heterozygous alterations out of which two were novel—c.191G>T p.(Cys64Phe), c.216del p.(Tyr73Metfs*86). In contrast, one variant has been previously reported c.451G>A p.(Gly151Ser) (HGMD no: CM041297) (Fig. 2b). The family history of patient 5 showed that she has a twin sister who, despite the lack of typical CFNS symptoms, underwent targeted PCR and Sanger sequencing. We evaluated the pathogenicity of missense variants in silico applying multiple online prediction tools including Polyphen-2, SIFT, CADD, MutationTaster and other resources such as DANN, FATHMM-MKL, LRT, BayesDel addAF, BayesDel noAF, GERP, PhyloP100, PhastCons integrated into either VarSome online tool or Alamut® Visual software product. The classification of all variants was performed following the American College of Medical Genetics and Genomics (ACMG) guidelines (Table 2). Applying SWISS-MODEL, we have visualized in 3D both wild type and mutated missense alterations in the ephrin-B1, i.e., p.(Cys64Phe) and p.(Gly151Ser)  (Fig. 3).
The monozigosity of twin patient 5 and 6 was confirmed based on an analysis of 33 STR markers localized on 13, 18, 21, X and Y chromosomes.
We detected random XCI in twin patient 6 (46% vs. 54%), who manifested facial features unsuggestive for CFNS, whereas non-random XCI (84% vs. 16%) in twin patient 5, who showed a classical CFNS facial phenotype.
The craniofacial phenotype of patient 6 was assessed using Face2Gene online available tool. Among the suggested 30 different syndromes, CFNS was not listed by the algorithm. However, the first five proposed diagnoses were as follows—Cornelia de Lange syndrome, Costello syndrome, Megalencephaly-Capillary Malformation-Polymicrogyria Syndrome, Alpha-Thalassemia/mental Retardation Syndrome and CHARGE syndrome. On the contrary, the phenotype of patient 5 was correctly identified as CFNS (listed as second).
Although monozygotic twins originate from a single zygote and share the same genetic material and similar intrauterine environment, they occasionally may show discordant phenotypes of monozygotic disorder. The differences in clinical phenotype can be explained through at least several mechanisms such as epigenetic factors, an asymmetric split of the embryo, discordant cell differentiation or abnormalities in placental blood flow [14,15,16]. Intriguingly, our primary finding was the evaluation of monozygotic twin patients, i.e. patient 5 and 6, who presented with highly variable severity of the CFNS symptoms. Both individuals carried the same p.(Glu210*) pathogenic EFNB1 variant and identical germline genetic information. In patient 5, we noted a typical female presentation of CFNS (Table 1; Fig. 1a–d). In contrast, in patient 6, we only detected mild facial anomalies unsuggestive for CFNS, including anteverted nares, depressed nasal bridge, low-set ears, coarse facial features, micrognathia and short neck (Table 1; Fig. 1e). Besides, the craniofacial phenotype of patient 6 was analyzed using Face2Gene, which did not match CFNS among the possible dysmorphological diagnoses.
Mild clinical features in female individuals with CFNS are rather unusual. As mentioned before, CFNS inherits paradoxically and presents more severe clinical symptoms in females, who harbour the heterozygous EFNB1 variants in comparison to hemizygous males. Furthermore, rarely reported mosaic male individuals are more severely affected than their hemizygous counterparts. This is because other ephrin family members can presumably substitute the complete lack of ephrin-B1 in purely hemizygous males [3, 7, 17]. In the medical literature, we have found merely one description of mildly affected CFNS female patient. Twigg et al. reported a familial case (family no. 3217) heterozygous for a missense pathogenic variant p.(Pro54Leu), in which one of the affected females had minimal clinical manifestations of CFNS. However, this patient was shown to have a lower mutation level in the hair roots and buccal swab . In our case, we were unable to check for the mosaicism in mesoderm or ectoderm-derived cell lines, although the level for the causative variant in blood cells reached 50% of reads, being unsuggestive of somatic mosaicism.
Except for mosaicism in other than blood cells, one may suspect the presence of additional modifiers of the phenotype, including epigenetic factors [18,19,20]. To check whether the variable severity of CFNS in both twin females resulted from skewed X chromosome inactivation, we performed XCI testing. We hypothesized that similar to male patients who show minimal CFNS symptoms, our mildly affected twin sister may have a highly preferential expression of the EFNB1 from a single gene copy, resembling its status in hemizygosity. To our surprise, we demonstrated unequal XCI in the severely affected twin patient 5 (84% vs. 16%) and almost random X inactivation in the mildly affected twin patient 6 (46% vs. 54%). Our finding, therefore, suggests that skewed X inactivation cannot account for the mild presentation of CFNS in one of our twin sisters and probably other mildly affected female individuals. Recently, another research group did not find evidence for preferential XCI or a distinct correlation between XCI ratios in a group of familial X-linked hypohidrotic ectodermal dysplasia patients showing variable disease manifestation . Hence our result strengthens the above conclusion regarding the presence of additional yet undetected modifying factors resulting in discordant phenotype in X-linked disorders.
Second, we have also compared the phenotypic presentation of the six female CFNS individuals (Table 1). We have noticed that all patients, except for patient 6, manifested the following clinical features—hypertelorism, CS (also except for patient 1), low set ears, coarse facial features, high palate, anterior open bite and longitudinal riding of the fingernails. The rarest clinical feature was brachydactyly (patient 3; Fig. 1). Our observation may suggest that CNFS has a relatively constant set of features. However, we have also broadened the phenotypic spectrum of CFNS syndrome, as we reported new features present in patient 3, such as a bifid hallux, bicornuate uterus and abnormal right ovary segmented into six parts.
Lastly, we have expanded the EFNB1 gene mutational spectrum as we described three additional novel variants located in the EFNB1 gene—p.(Trp12*), p.(Tyr73Metfs*86), p.(Glu210*) and consequently increased the total number of CFNS-associated pathogenic variants to 123. All newly identified alterations were found applying either targeted NGS of a custom gene panel or PCR followed by Sanger sequencing. Subsequently, we evaluated the pathogenicity of the detected variants using in silico predictors (Table 2).
First of all, we have pointed to an unusual phenomenon of mildly affected females with CFNS, who may not manifest features suggestive of the syndrome. As a consequence, this study may be valuable for clinical geneticists consulting patients with craniofacial disorders and who potentially may overlook such individuals. Second, we excluded skewed XCI pattern as a cause of discordant phenotype in monozygotic twins described here. Our study strengthens the recent conclusion regarding the presence of additional yet undetected modifying factors resulting in X-linked disorders’ discordant phenotype. Third, we have also expanded the CFNS phenotypic spectrum by describing in patient 3 novel features of the syndrome, such as bifid hallux, bicornuate uterus, and abnormal right ovary segmented into six parts. Finally, we have expanded the mutational spectrum of the EFNB1 gene by reporting three other novel pathogenic variants causing CFNS.
Availability of data and materials
The datasets for this article are not publicly available due to concerns regarding participants/ patients anonymity. Requests to access the datasets should be directed to the corresponding author.
American College of Medical Genetics and Genomics
X chromosome inactivation
Cohen MMJ. Craniofrontonasal dysplasia. Birth Defects Orig Artic Ser. 1979;15(5B):85–9.
Twigg SRF, Matsumoto K, Kidd AMJ, Goriely A, Taylor IB, Fisher RB, et al. The origin of EFNB1 mutations in craniofrontonasal syndrome: frequent somatic mosaicism and explanation of the paucity of carrier males. Am J Hum Genet. 2006;78(6):999–1010.
Twigg SRF, Babbs C, van den Elzen MEP, Goriely A, Taylor S, McGowan SJ, et al. Cellular interference in craniofrontonasal syndrome: males mosaic for mutations in the X-linked EFNB1 gene are more severely affected than true hemizygotes. Hum Mol Genet. 2013;22(8):1654–62.
Van Den Elzen MEP, Twigg SRF, Goos JAC, Hoogeboom AJM, Van Den Ouweland AMW, Wilkie AOM, et al. Phenotypes of craniofrontonasal syndrome in patients with a pathogenic mutation in EFNB1. Eur J Hum Genet. 2014;22(8):995–1001. https://doi.org/10.1038/ejhg.2013.273.
Wieacker P, Wieland I. Clinical and genetic aspects of craniofrontonasal syndrome: towards resolving a genetic paradox. Mol Genet Metab. 2005;86(1–2):110–6.
Compagni A, Logan M, Klein R, Adams RH. Control of skeletal patterning by ephrinB1-EphB interactions. Dev Cell. 2003;5(2):217–30.
Niethamer TK, Teng T, Franco M, Du YX, Percival CJ, Bush JO. Aberrant cell segregation in the craniofacial primordium and the emergence of facial dysmorphology in craniofrontonasal syndrome. PLoS Genet. 2020;16(2):e1008300.
Shotelersuk V, Kamolvisit W, Rojvachiranonda N, Suphapeetiporn K, Porntaveetus T, Shotelersuk V. Severe craniofrontonasal syndrome in a male patient mosaic for a novel nonsense mutation in EFNB1. Eur J Med Genet. 2020;63(6):103924.
Bukowska-Olech E, Materna-Kiryluk A, Walczak-Sztulpa J, Popiel D, Badura-Stronka M, Koczyk G, Dawidziuk A, Jamsheer A. Targeted next-generation sequencing in the diagnosis of facial dysostoses. Front Genet. 2020;11(November):1–12.
Bukowska-Olech E, Sowińska-Seidler A, Łojek F, Popiel D, Walczak-Sztulpa J, Jamsheer A. Further phenotypic delineation of the auriculocondylar syndrome type 2 with literature review. J Appl Genet. 2020. https://doi.org/10.1007/s13353-020-00591-3.
Janczar S, Babol-Pokora K, Jatczak-Pawlik I, Taha J, Klukowska A, Laguna P, et al. Six molecular patterns leading to hemophilia A phenotype in 18 females from Poland. Thromb Res. 2020 Sep;193:9–14.
Janczar S, Kosinska J, Ploski R, Pastorczak A, Wegner O, Zalewska-Szewczyk B, et al. Haemophilia A and cardiovascular morbidity in a female SHAM syndrome carrier due to skewed X chromosome inactivation. Eur J Med Genet. 2016;59(1):43–7.
Waterhouse A, Bertoni M, Bienert S, Studer G, Tauriello G, Gumienny R, et al. SWISS-MODEL: homology modelling of protein structures and complexes. Nucleic Acids Res. 2018 Jul;46(W1):W296–303.
Izumi K, Hayashi D, Grochowski CM, Kubota N, Nishi E, Arakawa M, et al. Discordant clinical phenotype in monozygotic twins with Alagille syndrome: possible influence of non-genetic factors. Am J Med Genet A. 2016;170A(2):471–5.
Li L, Huang L, Lin S, Luo Y, Fang Q. Discordant phenotypes in monozygotic twins with 16p11.2 microdeletions including the SH2B1 gene. Am J Med Genet A. 2017 Aug;173(8):2284–8.
Dunkerton S, Field M, Cho V, Bertram E, Whittle B, Groves A, et al. A de novo Mutation in KMT2A (MLL) in monozygotic twins with Wiedemann–Steiner syndrome. Am J Med Genet A. 2015;167A(9):2182–7.
Wieland I, Makarov R, Reardon W, Tinschert S, Goldenberg A, Thierry P, et al. Dissecting the molecular mechanisms in craniofrontonasal syndrome: differential mRNA expression of mutant EFNB1 and the cellular mosaic. Eur J Hum Genet. 2008 Feb;16(2):184–91.
Abdellaoui A, Ehli EA, Hottenga J-J, Weber Z, Mbarek H, Willemsen G, et al. CNV concordance in 1,097 MZ Twin Pairs. Twin Res Hum Genet Off J Int Soc Twin Stud. 2015;18(1):1–12.
Nishioka M, Bundo M, Ueda J, Yoshikawa A, Nishimura F, Sasaki T, et al. Identification of somatic mutations in monozygotic twins discordant for psychiatric disorders. npj Schizophr. 2018;4(1):7. https://doi.org/10.1038/s41537-018-0049-5.
Fan X, Ping L, Sun H, Chen Y, Wang P, Liu T, et al. Whole-exome sequencing of discordant monozygotic Twin families for identification of candidate genes for Microtia-Atresia. Front Genet. 2020;11:568052.
Körber L, Schneider H, Fleischer N, Maier-Wohlfart S. No evidence for preferential X-chromosome inactivation as the main cause of divergent phenotypes in sisters with X-linked hypohidrotic ectodermal dysplasia. Orphanet J Rare Dis. 2021;16(1):98.
Köhler S, Doelken SC, Mungall CJ, Bauer S, Firth HV, Bailleul-Forestier I, et al. The human phenotype ontology project: linking molecular biology and disease through phenotype data. Nucl Acids Res. 2014;42(Database issue):D966-74.
We are grateful to the patients and their parents for participating in this study.
This work was supported by the Poznan University of Medical Sciences grant – 502-14-11261860-41259 to E.B.-O., the Polish National Science Centre grants 2016/23/N/NZ5/02577 to E.B.-O., 2016/22/E/NZ5/00270 to A.J. and 2015/19/B/NZ2/01824 to P.G.
According to the Good Clinical Practice and Polish law, the studies involving human participants were reviewed and approved by the Bioethics Committee at Poznan University of Medical Sciences (no. 741/17 and 742/17). All patients and their parents agreed to participate in this study. Written informed consent to participate in this study was provided by the participant’s legal guardian/next of kin. Written informed consent was obtained from the minor(s)’ legal guardian/next of kin to publish any potentially identifiable images or data included in this article.
The authors declare that they have no competing interests.
